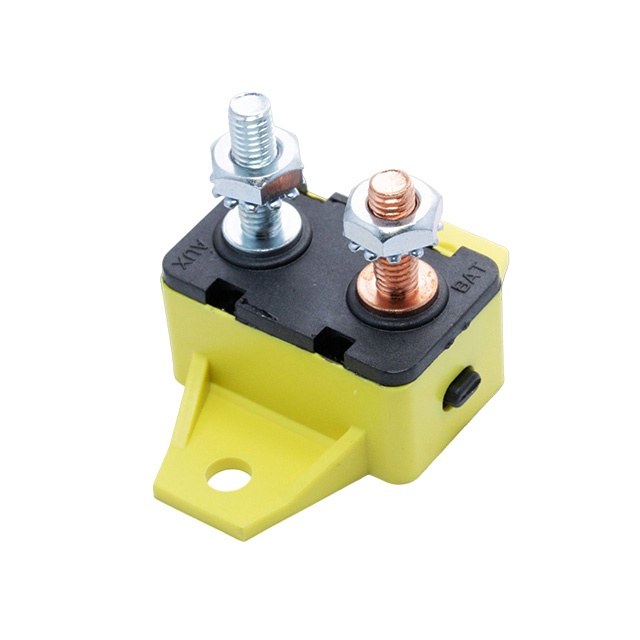

MRCBP-H-20C

Active

OptiFuse

CIR BRKR 20A 32VDC PUSH-RESET

Search across all available documentation for this part.

Active

OptiFuse

CIR BRKR 20A 32VDC PUSH-RESET

Technical Specifications

Parameters and characteristics for this part

Part	Illumination	Breaker Type	Actuator Type	Current Rating (Amps)	Approval Agency	Voltage Rating - DC	Number of Poles
OptiFuse MRCBP-24-V-20A	None	Shortstop	Push to Reset	20 A	SAEJ553	24 V	1
OptiFuse MRCBP-24-H-15A	None	Shortstop	Push to Reset	15 A	SAEJ553	24 V	1
OptiFuse MRCBP-24-H-30A	None	Shortstop	Push to Reset	30 A	SAEJ553	24 V	1
OptiFuse MRCBP-24-V-50A	None	Shortstop	Push to Reset	50 A	SAEJ553	24 V	1
OptiFuse MRCBP-H-20C	None	Shortstop	Push to Reset	20 A	IP 63 SAE J1171 SAE J553	32 V	1
OptiFuse MRCBP-N-30C	None	Shortstop	Push to Reset	30 A	IP 63 SAE J1171 SAE J553	32 V	1
OptiFuse MRCBP-24-N-30A	None	Shortstop	Push to Reset	30 A	SAEJ553	24 V	1
OptiFuse MRCBP-24-V-40A	None	Shortstop	Push to Reset	40 A	SAEJ553	24 V	1
OptiFuse MRCBP-H-40A	None	Shortstop	Push to Reset	40 A	IP 63 SAE J1171 SAE J553	32 V	1
OptiFuse MRCBP-H-20A	None	Shortstop	Push to Reset	20 A	IP 63 SAE J1171 SAE J553	32 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.36

General part information

Circuit Breaker Shortstop 20A AC 32 V DC Push to Reset
