R30-6200314

Active

Harwin Inc.

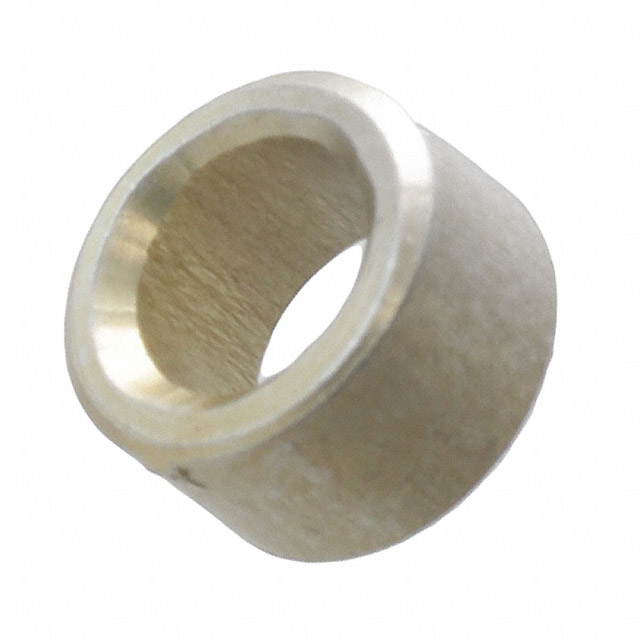

SPACER, ALUMINIUM, ROUND, 3MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

SPACER, ALUMINIUM, ROUND, 3MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Screw, Thread Size	Gender	Length - Overall	Length - Overall	Between Board Height	Between Board Height	Type	Plating	Threaded/Unthreaded	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Length - Overall [x]	Length - Overall [x]
Harwin Inc. R30-6200314	Aluminum	5 mm	0.197 in	M3	Female	0.118 "	3 mm	3 mm	0.118 in	Round Spacer	Passivated	Unthreaded	0.126 in	3.2 mm
Harwin Inc. R30-6200414	Aluminum	5 mm	0.197 in	M3	Female			4 mm	0.157 in	Round Spacer	Passivated	Unthreaded	0.126 in	3.2 mm	4 mm	0.157 in
Harwin Inc. R30-6200514	Aluminum	5 mm	0.197 in	M3	Female			5 mm	0.197 in	Round Spacer	Passivated	Unthreaded	0.126 in	3.2 mm	5 mm	0.197 "
Harwin Inc. R30-6201814	Aluminum	5 mm	0.197 in	M3	Female			18 mm	0.709 in	Round Spacer	Passivated	Unthreaded	0.126 in	3.2 mm	18 mm	0.709 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Round Spacer Unthreaded M3 Aluminum 0.118" (3.00mm)
