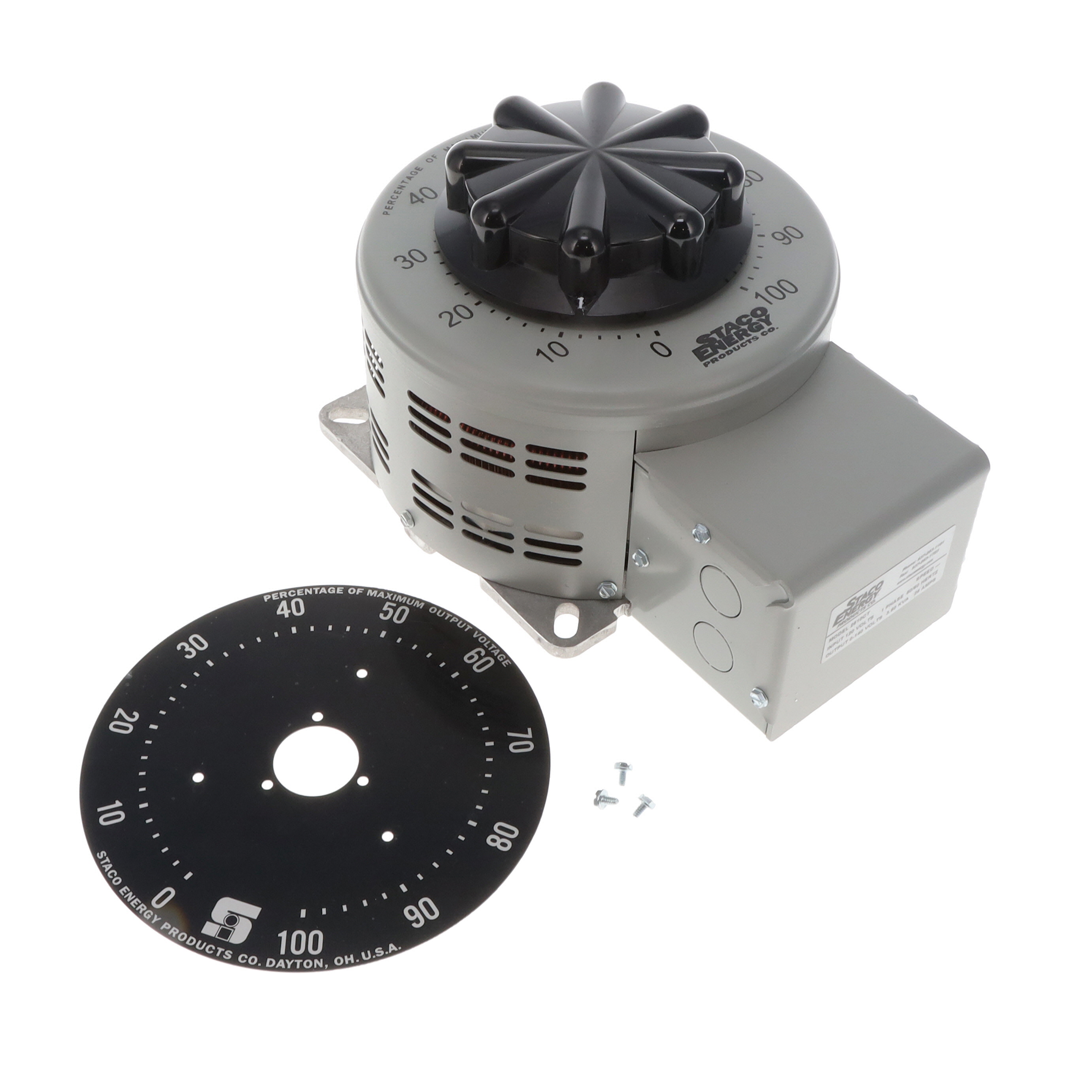

2510CT
ActiveVARIABLE, MANUALLY OPERATED & MOTOR DRIVEN, SINGLE PHASE, 50HZ / 60HZ, 120V, 140V
Deep-Dive with AI
Search across all available documentation for this part.
2510CT
ActiveVARIABLE, MANUALLY OPERATED & MOTOR DRIVEN, SINGLE PHASE, 50HZ / 60HZ, 120V, 140V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2510CT |
|---|---|
| Constant Current Load - Max | 3.5 kVA |
| Constant Current Load - Max [Max] | 25 A |
| Output Type | Terminals |
| Size [x] | 7.95 " |
| Size [x] | 201.93 mm |
| Size [y] | 268.22 mm |
| Size [y] | 10.56 " |
| Size [z] | 118.36 mm |
| Size [z] | 4.66 " |
| Type | Panel Mount |
| Voltage - Output | 120 VAC, 140 VAC |
| Voltage - Supply | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
2510 Series
The 2510CT is a Variable Transformer represents a compact high current variable transformer design. It can be operated at frequencies between 50 and 2000Hz with derating at higher than rated frequency. The 2500 series transformer has case which also includes a terminal box cover with knock-outs to accept conduit.
