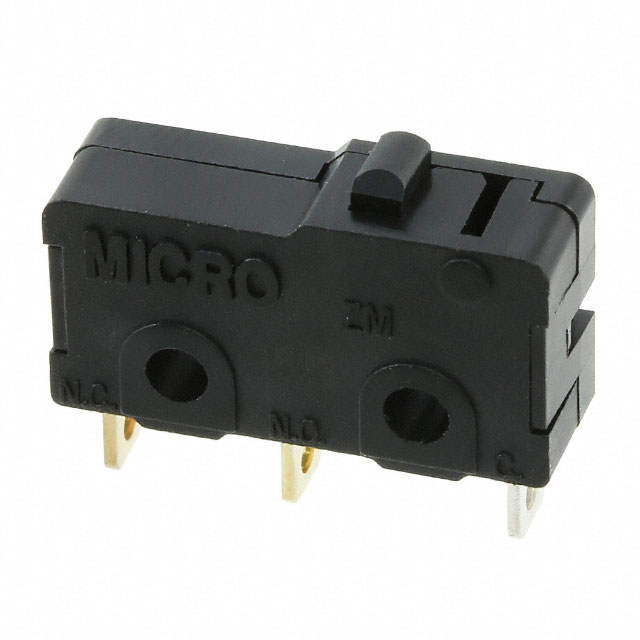

ZM10B10A01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Technical Specifications

Parameters and characteristics for this part

Part	Release Force	Termination Style	Current Rating (Amps)	Mounting Type	Pretravel	Pretravel	Actuator Type	Voltage Rating - DC	Operating Force	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel	Overtravel	Operating Position [x]	Operating Position [x]	Mechanical Life	Circuit	Switch Function	Electrical Life	Operating Position	Operating Position	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions ZM10B10D01	8 gf	Solder Lug	100 mA	Chassis Mount	6.1 mm	0.24 in	Lever Straight	30 V	60 gf	125 V	-40 °C	120 °C	0.76 mm	0.03 in	0.35 in	8.9 mm	10000000 Cycles	SPDT	On-Mom	10000 Cycles
Honeywell Sensing and Productivity Solutions ZM10B10A01	8 gf	Solder Lug	100 mA	Chassis Mount	1.1 mm	0.043 "	Round (Pin Plunger)	30 V	60 gf	125 V	-40 °C	120 °C	0.4 mm	0.015 "			10000000 Cycles	SPDT	On-Mom	10000 Cycles	0.449 in	11.4 mm	0.008 in	0.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
