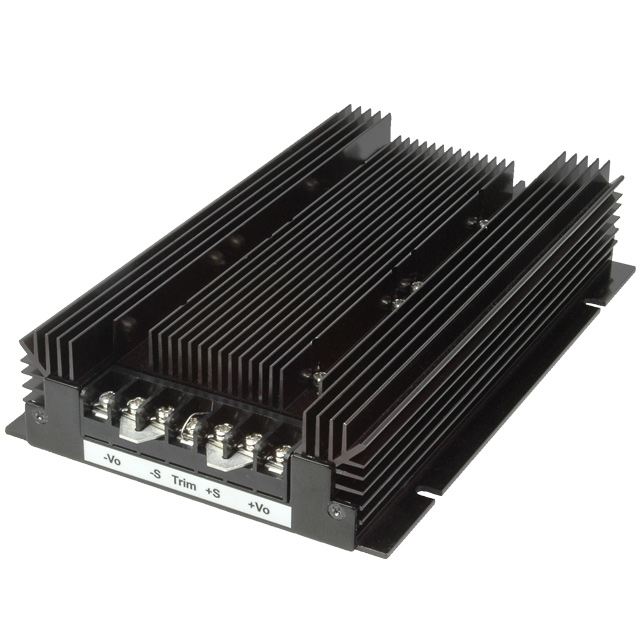

VFK400W-Q24-S48
ActiveCUI Inc.
DC/DC CONVERTER 48V 400W
Deep-Dive with AI
Search across all available documentation for this part.
VFK400W-Q24-S48
ActiveCUI Inc.
DC/DC CONVERTER 48V 400W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VFK400W-Q24-S48 |
|---|---|
| Current - Output (Max) [Max] | 8.3 A |
| Efficiency | 86 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 199 mm |
| Size / Dimension [x] | 7.84 " |
| Size / Dimension [y] | 4.99 in |
| Size / Dimension [y] | 126.8 mm |
| Size / Dimension [z] | 1.54 " |
| Size / Dimension [z] | 39 mm |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 10 VDC |
| Voltage - Output 1 | 48 V |
VFK400W Series
| Part | Approval Agency | Efficiency | Voltage - Output 1 | DC Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Input Type | DC Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Type | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Inc. | CE | 86 % | 24 V | 75 V | 2.11 " | 198.9 mm | 5 " | 7.83 in | 53.6 mm | 127 mm | DC | 18 V | 16.7 A | 85 °C | -40 °C | 1 | |||||||
CUI Inc. | CE | 86 % | 48 V | 36 V | 2.11 " | 198.9 mm | 5 " | 7.83 in | 53.6 mm | 127 mm | DC | 10 V | 8.3 A | 85 °C | -40 °C | 1 | |||||||
CUI Inc. | 86 % | 48 V | 1.54 " | 199 mm | 4.99 in | 7.84 " | 8.3 A | 100 °C | -40 °C | 1 | Enclosed | 126.8 mm | 39 mm | Chassis Mount | 36 V | 10 VDC | |||||||
CUI Inc. | 87 % | 12 V | 1.54 " | 199 mm | 4.99 in | 7.84 " | 100 °C | -40 °C | 1 | Enclosed | 126.8 mm | 39 mm | Chassis Mount | 75 V | 20 V | 33.6 A | |||||||
CUI Inc. | 86 % | 24 V | 1.54 " | 199 mm | 4.99 in | 7.84 " | 16.7 A | 100 °C | -40 °C | 1 | Enclosed | 126.8 mm | 39 mm | Chassis Mount | 75 V | 18 V | |||||||
CUI Inc. | CE | 87 % | 12 V | 75 V | 2.11 " | 198.9 mm | 5 " | 7.83 in | 53.6 mm | 127 mm | DC | 20 V | 33.3 A | 85 °C | -40 °C | 1 | |||||||
CUI Inc. | CE | 87 % | 12 V | 36 V | 2.11 " | 198.9 mm | 5 " | 7.83 in | 53.6 mm | 127 mm | DC | 10 V | 33.3 A | 85 °C | -40 °C | 1 | |||||||
CUI Inc. | 86.5 % | 48 V | 1.54 " | 199 mm | 4.99 in | 7.84 " | 8.3 A | 100 °C | -40 °C | 1 | Enclosed | 126.8 mm | 39 mm | Chassis Mount | 75 V | 18 V | |||||||
CUI Inc. | CE | 15 V | 75 V | 2.11 " | 198.9 mm | 5 " | 7.83 in | 53.6 mm | 127 mm | DC | 18 V | 26.7 A | 85 °C | -40 °C | 1 | ||||||||
CUI Inc. | 86 % | 24 V | 1.54 " | 199 mm | 4.99 in | 7.84 " | 16.7 A | 100 °C | -40 °C | 1 | Enclosed | 126.8 mm | 39 mm | Chassis Mount | 36 V | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 663.45 | |
| 5 | $ 641.33 | |||
| 12 | $ 630.28 | |||
Description
General part information
VFK400W Series
Enclosed DC DC Converter 1 Output 48V 8.3A 36V Input
Documents
Technical documentation and resources
No documents available
