SDB-15PMMP-SR8001

Active

Amphenol LTW

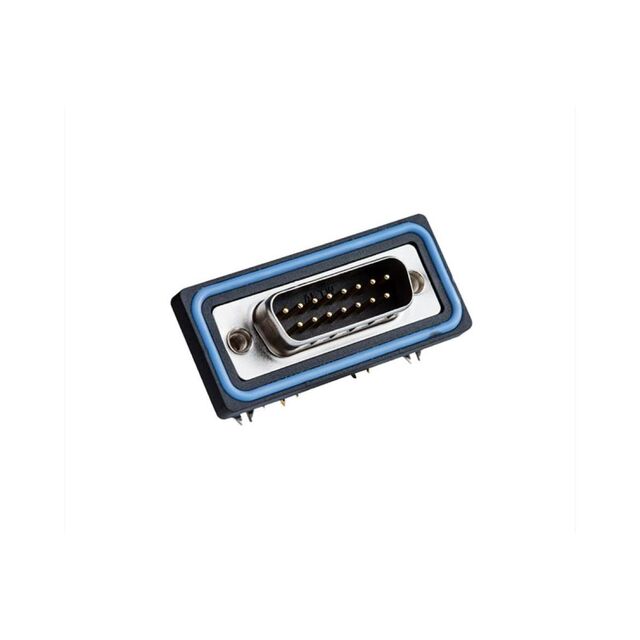

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

SDB-15PMMP-SR8001

Active

Amphenol LTW

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDB-15PMMP-SR8001

Backset Spacing	0.276 in
Backset Spacing	7 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

SDB-15PMMP Series

Part	Flange Feature	Contact Finish Thickness	Connector Type	Contact Finish	Connector Style	Dielectric Material	Number of Rows	Mounting Type	Color	Termination	Shell Material, Finish	Current Rating (Amps)	Shell Size, Connector Layout	Features	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Material	Ingress Protection	Backset Spacing	Backset Spacing
Amphenol LTW SDB-15PMMP-QL8001	Female Screwlock (4-40) Mating Side	Flash	Male Pins Plug	Gold	D-Sub	Polybutylene Terephthalate (PBT)	2	Panel Mount Through Hole	Black	Solder	Nickel Plated Steel	5 A	2	Automated Latch Gasket Grounding Indents Shielded	15	-40 °C	105 ░C	Signal	Copper Alloy	IP68 - Dust Tight Waterproof
Amphenol LTW SDB-15PMMP-SR8001	Female Screwlock (4-40) Mating Side		Male Pins Plug	Gold	D-Sub	Polybutylene Terephthalate (PBT)	2	Panel Mount Right Angle Through Hole	Black	Solder	Nickel Plated Steel	5 A	2	Grounding Indents Shielded	15	-40 °C	105 ░C	Signal	Copper Alloy	IP68 - Dust Tight Waterproof	0.276 in	7 mm
Amphenol LTW SDB-15PMMP-QA8001	Female Screwlock (4-40) Mating Side	Flash	Male Pins Plug	Gold	D-Sub	Polybutylene Terephthalate (PBT)	2	Panel Mount Through Hole	Black	Solder	Nickel Plated Steel	5 A	2	Automated Latch Board Lock Gasket Grounding Indents Shielded	15	-40 °C	105 ░C	Signal	Copper Alloy	IP68 - Dust Tight Waterproof
Amphenol LTW SDB-15PMMP-SB8001	Female Screwlock (4-40) Mating Side		Male Pins Plug	Gold	D-Sub	Polybutylene Terephthalate (PBT)	2	Panel Mount Right Angle Through Hole	Black	Solder	Nickel Plated Steel	5 A	2	Board Lock Grounding Indents Shielded	15	-40 °C	105 ░C	Signal	Copper Alloy	IP68 - Dust Tight Waterproof	0.276 in	7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 12.68

Description

General part information

SDB-15PMMP Series

15 Position D-Sub Plug, Male Pins Connector
