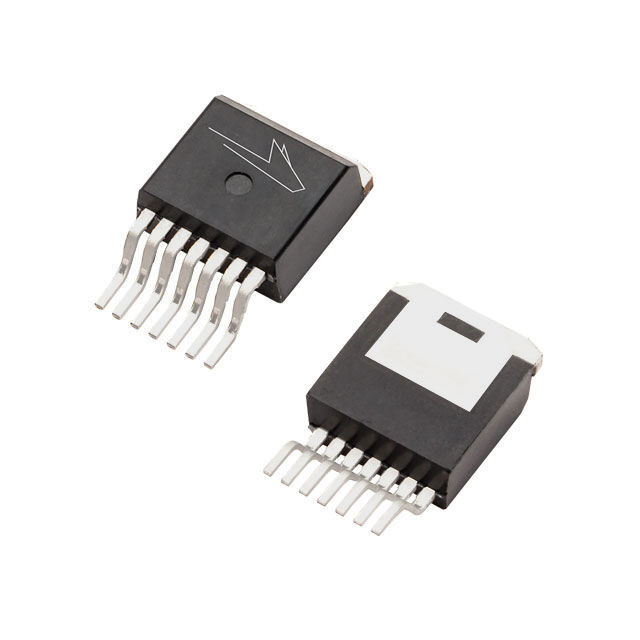

C3M0120065J-TR

Obsolete

Wolfspeed

SIC, MOSFET, 120M, 650V, TO-263-

Search across all available documentation for this part.

Obsolete

Wolfspeed

SIC, MOSFET, 120M, 650V, TO-263-

Technical Specifications

Parameters and characteristics for this part

Specification	C3M0120065J-TR

Current - Continuous Drain (Id) @ 25°C	21 A
Drain to Source Voltage (Vdss)	650 V
Drive Voltage (Max Rds On, Min Rds On)	15 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	26 nC
Input Capacitance (Ciss) (Max) @ Vds	640 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA
Power Dissipation (Max)	86 W
Rds On (Max) @ Id, Vgs	157 mOhm
Supplier Device Package	TO-263-7
Vgs (Max) [Max]	19 V
Vgs (Max) [Min]	-8 V
Vgs(th) (Max) @ Id	3.6 V

Part	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)	Vgs (Max) [Min]	Vgs (Max) [Max]	Package / Case	Supplier Device Package	Rds On (Max) @ Id, Vgs	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C
Wolfspeed C3M0120065J-TR	640 pF	Surface Mount	-40 C	175 °C	15 V	N-Channel	26 nC	650 V	-8 V	19 V	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	TO-263-7	157 mOhm	86 W	3.6 V	21 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 650 V 21A (Tc) 86W (Tc) Surface Mount TO-263-7
