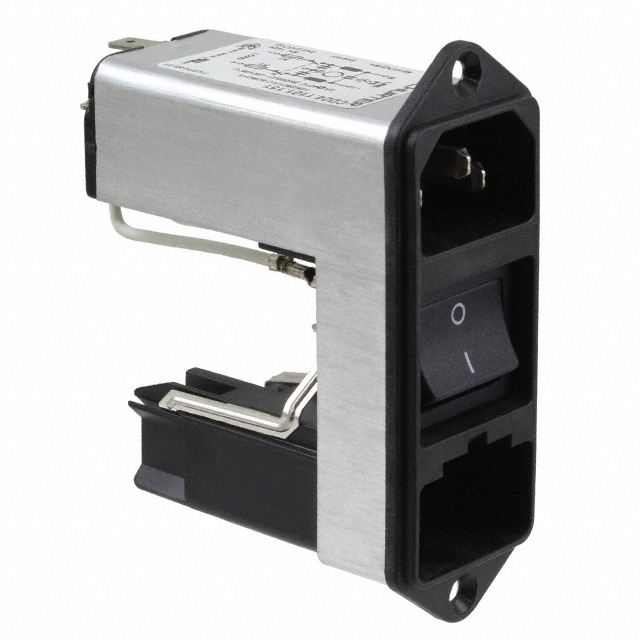

CDA4.4101.151

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	CDA4.4101.151

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	2 A
Features	Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.5 mm
Panel Cutout Dimensions [y]	67.5 mm
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Style	Filter Type	Current Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Current Rating - Filter	Fuse Holder, Drawer	Termination	Termination	Material Flammability Rating	Mounting Type	Connector Type	Approval Agency	Voltage Rating - Appliance Inlet	Switch Features	Accomodates a Fuse	Features
SCHURTER Inc. CDA4.4101.151	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	10 A	28.5 mm	67.5 mm	IP40	2 A	Fuse Holder	0.189 " 4.8 mm	Quick Connect	UL94 V-0	Flange Panel Mount	Receptacle Male Blades - Module	cULus ENEC	250 VAC	Switch On-Off		Voltage Selector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
