PXD30-48D05

Active

TDK-LAMBDA

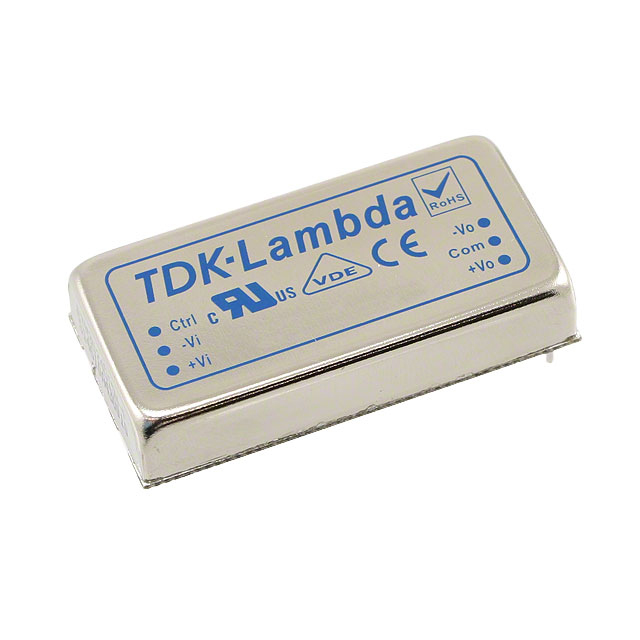

ISOLATED THROUGH HOLE DC/DC CONVERTER, 30 W, 2 OUTPUT, 5 V, 3 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

PXD30-48D05

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, 30 W, 2 OUTPUT, 5 V, 3 A

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXD30-48D05

Applications	ITE (Commercial)
Current - Output (Max) [Max]	3 A
Current - Output (Max) [Max]	3 A
Efficiency	88 %
Features	OVP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Package / Case	6-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

PXD30 Series

Part	Power (Watts)	Mounting Type	Features	Applications	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output 1	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Type	Package / Case	Efficiency	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
TDK-LAMBDA PXD30-12S12	30 W	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	2.5 A	1	18 V	12 V	9 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	Isolated Module	6-DIP Module
TDK-LAMBDA PXD30-24D15	30 W	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)		2	36 V	15 V	18 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	Isolated Module	6-DIP Module	87 %	-15 V	1 A	1 A
TDK-LAMBDA PXD30-12S05	30 W	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	6 A	1	18 V	5 V	9 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	Isolated Module	6-DIP Module
TDK-LAMBDA PXD30-48D05	30 W	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	3 A	2	75 V	5 V	36 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	Isolated Module	6-DIP Module	88 %	-5 V			3 A
TDK-LAMBDA PXD30-24D05	30 W	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	3 A	2	36 V	5 V	18 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	Isolated Module	6-DIP Module	88 %	-5 V			3 A
TDK-LAMBDA PXD30-24WD12	30 W	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)		2	36 V	12 V	9 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	Isolated Module	6-DIP Module	87 %	-12 V	1.25 A			85 °C	-40 °C
TDK-LAMBDA PXD30-24D12	30 W	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)		2	36 V	12 V	18 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	Isolated Module	6-DIP Module	87 %	-12 V	1.25 A
TDK-LAMBDA PXD30-48S05	30 W	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	6 A	1	75 V	5 V	36 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	Isolated Module	6-DIP Module	88 %
TDK-LAMBDA PXD30-24WS05	30 W	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	6 A	1	36 V	5 V	9 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	Isolated Module	6-DIP Module	88 %					85 °C	-40 °C
TDK-LAMBDA PXD30-24WS3P3	30 W	Through Hole	OCP OVP Remote On/Off SCP	ITE (Commercial)	7.5 A	1	36 V	3.3 V	9 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	Isolated Module	6-DIP Module	86 %					85 °C	-40 °C
