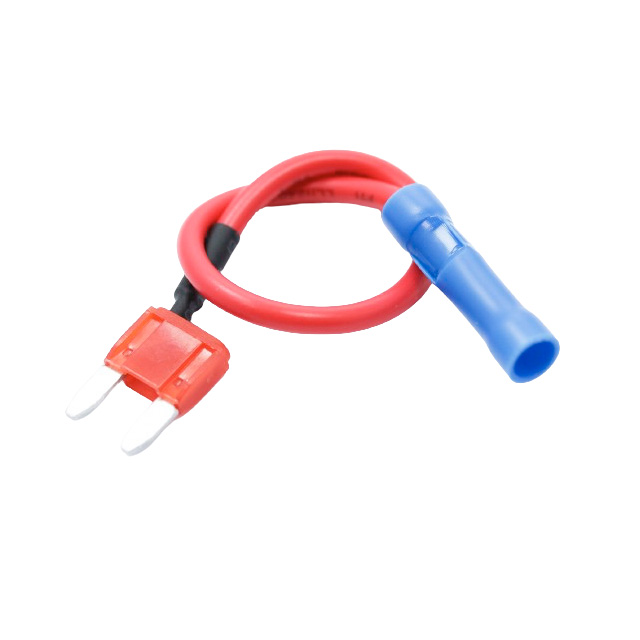

ANM-W-10A-16R

Active

OptiFuse

FUSE AUTO 10A 32VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 10A 32VDC BLADE MINI

Technical Specifications

Parameters and characteristics for this part

Specification	ANM-W-10A-16R

Breaking Capacity @ Rated Voltage	1 kA
Color	Red
Current Rating (Amps)	10 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Miniature
Response Time	Fast Blow
Size / Dimension [x]	0.429 "
Size / Dimension [x]	10.9 mm
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.8 mm
Size / Dimension [z]	9.2 mm
Size / Dimension [z]	0.362 in
Voltage Rating - DC	32 V

Part	Voltage Rating - DC	Response Time	Color	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Breaking Capacity @ Rated Voltage	Package / Case	Current Rating (Amps)	Fuse Type
OptiFuse ANM-W-15A-16R	32 V	Fast Blow	Blue	Requires Holder	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	1 kA	Blade Miniature	15 A	Automotive
OptiFuse ANM-W-10A-16R	32 V	Fast Blow	Red	Requires Holder	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	1 kA	Blade Miniature	10 A	Automotive
OptiFuse ANM-W-15A-18R	32 V	Fast Blow	Blue	Requires Holder	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	1 kA	Blade Miniature	15 A	Automotive
OptiFuse ANM-W-10A-18R	32 V	Fast Blow	Red	Requires Holder	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	1 kA	Blade Miniature	10 A	Automotive
OptiFuse ANM-W-20A-18R	32 V	Fast Blow	Yellow	Requires Holder	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	1 kA	Blade Miniature	20 A	Automotive
OptiFuse ANM-W-20A-16R	32 V	Fast Blow	Yellow	Requires Holder	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	1 kA	Blade Miniature	20 A	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
