011032WF018

Active

Essentra Access Solutions

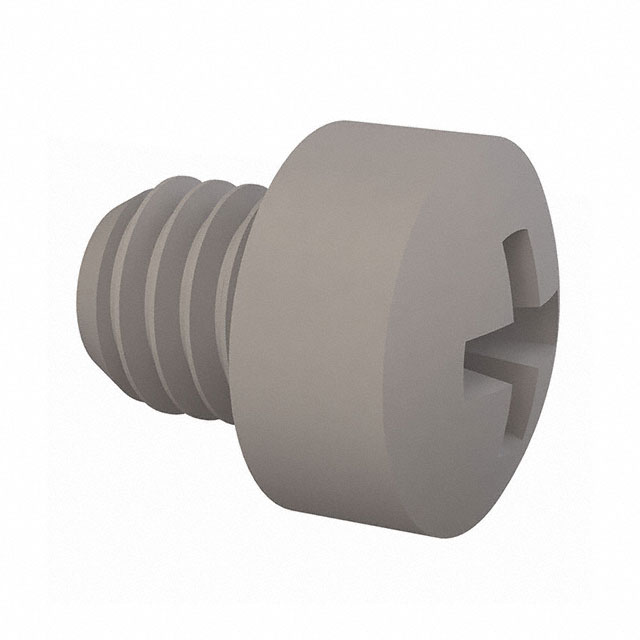

FILLISTER PHILLIPS SCREW 10-32

Search across all available documentation for this part.

Active

Essentra Access Solutions

FILLISTER PHILLIPS SCREW 10-32

Technical Specifications

Parameters and characteristics for this part

Part	Drive Type	Length - Below Head	Length - Below Head	Length - Below Head	Thread Size	Screw Head Type	Length - Overall [x]	Length - Overall [x]	Head Diameter [diameter]	Head Diameter [diameter]	Type	Material	Head Height	Head Height	Length - Below Head [x]	Length - Below Head [x]	Length - Overall
Essentra Access Solutions 011032WF075	Phillips	0.75 "	19.05 mm	0.75 "	#10-32	Pan Head	27.58 mm	1.086 in	7.68 mm	0.303 in	Machine Screw	Nylon	8.53 mm	0.336 in
Essentra Access Solutions 011032WF018	Phillips				#10-32	Pan Head		0.524 in	7.68 mm	0.303 in	Machine Screw	Nylon	8.53 mm	0.336 in	4.76 mm	0.188 in	13.3 mm
Essentra Access Solutions 011032WF037	Phillips	9.53 mm	0.375 "	0.375 "	#10-32	Pan Head		0.711 in	7.68 mm	0.303 in	Machine Screw	Nylon	8.53 mm	0.336 in			18.06 mm
Essentra Access Solutions 011032WF012	Phillips	0.125 in	3.18 mm	0.125 in	#10-32	Pan Head	11.71 mm	0.461 in	7.68 mm	0.303 in	Machine Screw	Nylon	8.53 mm	0.336 in
Essentra Access Solutions 011032WF106	Phillips				#10-32	Pan Head			7.68 mm	0.303 in	Machine Screw	Nylon	8.53 mm	0.336 in
Essentra Access Solutions 011032WF025	Phillips	0.25 in	6.35 mm	0.25 in	#10-32	Pan Head	14.88 mm	0.586 in	7.68 mm	0.303 in	Machine Screw	Nylon	8.53 mm	0.336 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.07

General part information

#10-32 Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

No documents available
