0151360206

Active

Molex

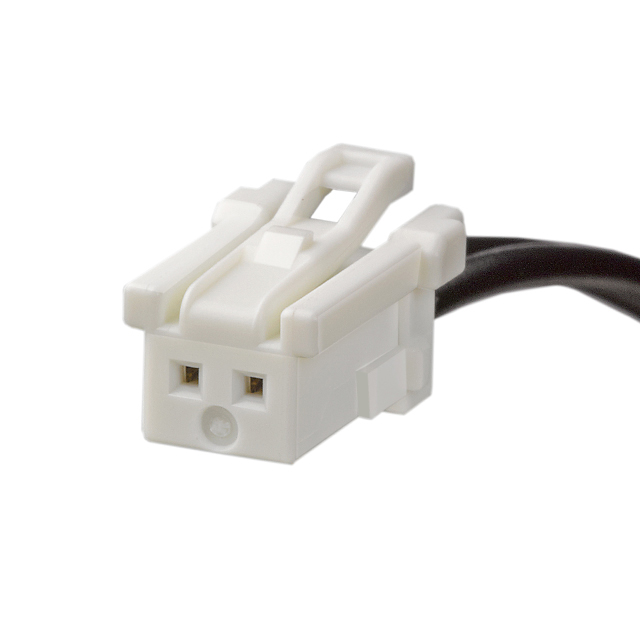

MICROCLASP 2 CIRCUIT 600MM

Search across all available documentation for this part.

Active

Molex

MICROCLASP 2 CIRCUIT 600MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Finish	Features	Shielding	Pitch - Connector	Pitch - Connector	Length	Length	Length	Cable Termination	Connector Type	Length [x]	Length [x]	Length [x]	Number of Positions
Molex 0151360301	35.4 µin	0.9 µm	1	Tin	Latch Lock	Unshielded	2 mm	0.079 in	100 mm	0.328 '	3.94 "	Crimp	Socket to Socket
Molex 0151360503	35.4 µin	0.9 µm	1	Tin	Latch Lock	Unshielded	2 mm	0.079 in				Crimp	Socket to Socket	0.984 '	11.81 "	300 mm
Molex 0151360406	35.4 µin	0.9 µm	1	Tin	Latch Lock	Unshielded	2 mm	0.079 in	600 mm	1.97 ft		Crimp	Socket to Socket				4
Molex 0151360206	35.4 µin	0.9 µm	1	Tin	Latch Lock	Unshielded	2 mm	0.079 in	600 mm	1.97 ft		Crimp	Socket to Socket				2
Molex 0151360300	35.4 µin	0.9 µm	1	Tin	Latch Lock	Unshielded	2 mm	0.079 in	50 mm	0.164 '	1.97 "	Crimp	Socket to Socket
Molex 0151360706	35.4 µin	0.9 µm	1	Tin	Latch Lock	Unshielded	2 mm	0.079 in	600 mm	1.97 ft		Crimp	Socket to Socket				7
Molex 0151360401	35.4 µin	0.9 µm	1	Tin	Latch Lock	Unshielded	2 mm	0.079 in	100 mm	0.328 '	3.94 "	Crimp	Socket to Socket				4
Molex 0151360800	35.4 µin	0.9 µm	1	Tin	Latch Lock	Unshielded	2 mm	0.079 in	50 mm	0.164 '	1.97 "		Socket to Socket				8
Molex 0151360305	35.4 µin	0.9 µm	1	Tin	Latch Lock	Unshielded	2 mm	0.079 in				Crimp	Socket to Socket	17.76 in		450 mm
Molex 0151360801	35.4 µin	0.9 µm	1	Tin	Latch Lock	Unshielded	2 mm	0.079 in	100 mm	0.328 '	3.94 "		Socket to Socket				8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Cable Assembly Rectangular Socket to Socket 1.97' (600.00mm)

Technical documentation and resources
