7-338-1PP-BA

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK PWR W/PINS BLACK TO-220

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK PWR W/PINS BLACK TO-220

Technical Specifications

Parameters and characteristics for this part

Specification	7-338-1PP-BA

Attachment Method	PC Pin, Bolt On
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length	1.5 "
Length	38.1 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	40 °C, 3 W
Shape	Rectangular, Fins
Thermal Resistance @ Natural	12.7 °C/W
Type	Board Level, Vertical
Width	1.38 "
Width	35.05 mm

Part	Fin Height [z]	Fin Height [z]	Type	Thermal Resistance @ Natural	Width	Width	Material Finish	Attachment Method	Shape	Package Cooled	Material	Power Dissipation @ Temperature Rise	Length	Length
Tusonix a Subsidiary of CTS Electronic Components 7-338-1PP-BA	12.7 mm	0.5 in	Board Level Vertical	12.7 °C/W	1.38 "	35.05 mm	Black Anodized	Bolt On PC Pin	Rectangular Fins	TO-220	Aluminum	3 W 40 °C	1.5 "	38.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

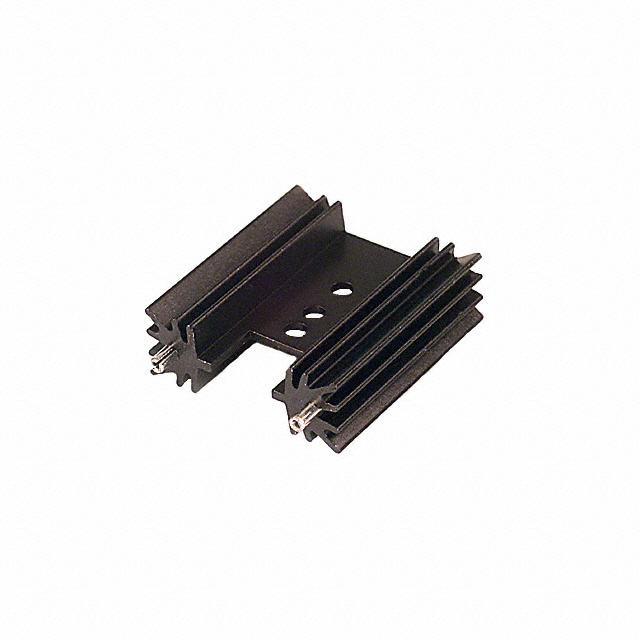

Heat Sink TO-220 Aluminum 3.0W @ 40°C Board Level, Vertical
