2SB1151-O-BP

Obsolete

Micro Commercial Components

TRANS PNP 60V 5A TO-126

Search across all available documentation for this part.

Obsolete

Micro Commercial Components

TRANS PNP 60V 5A TO-126

Technical Specifications

Parameters and characteristics for this part

Specification	2SB1151-O-BP

Current - Collector (Ic) (Max)	5 A
Current - Collector Cutoff (Max) [Max]	10 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

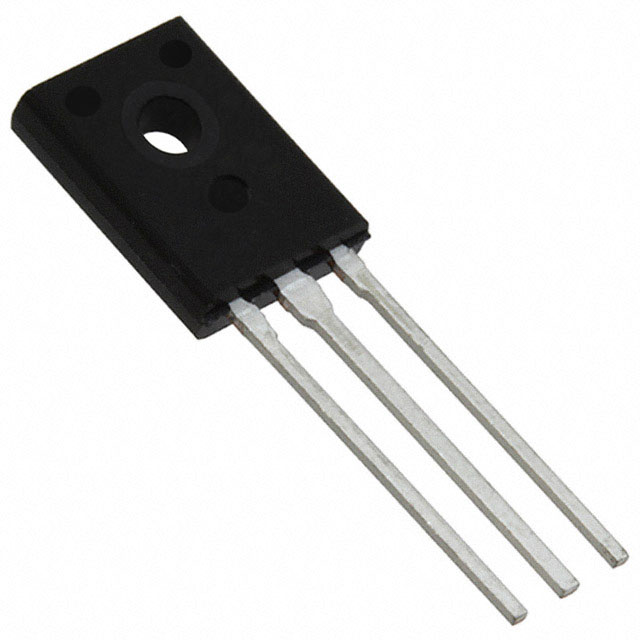

Package / Case	TO-225AA, TO-126-3
Power - Max [Max]	1.25 W
Supplier Device Package	TO-126
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	300 mV
Voltage - Collector Emitter Breakdown (Max)	60 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector Cutoff (Max) [Max]	Transistor Type	Mounting Type	Package / Case	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Current - Collector (Ic) (Max)	Voltage - Collector Emitter Breakdown (Max)
Micro Commercial Components 2SB1151-O-BP	-55 °C	150 °C	TO-126	100	10 µA	PNP	Through Hole	TO-126-3 TO-225AA	1.25 W	300 mV	5 A	60 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 60 V 5 A 1.25 W Through Hole TO-126
