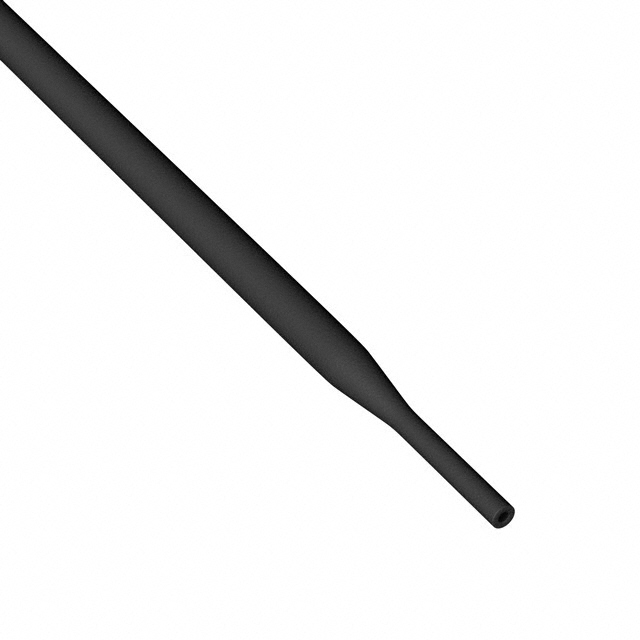

Q5-3X-3/8-01-SS50M
ActiveQualtek
HEATSHRINK 0.354" X 164' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
Q5-3X-3/8-01-SS50M
ActiveQualtek
HEATSHRINK 0.354" X 164' BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q5-3X-3/8-01-SS50M |
|---|---|
| Color | Black |
| Features | Adhesive Lined, Flame Retardant |
| Inner Diameter - Recovered [diameter] | 0.118 in |
| Inner Diameter - Recovered [diameter] | 2.99 mm |
| Inner Diameter - Supplied [diameter] | 0.354 in |
| Inner Diameter - Supplied [diameter] | 8.99 mm |
| Length | 164 ft |
| Length | 50 m |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.055 in |
| Recovered Wall Thickness | 1.4 mm |
| Shelf Life | 60 Months |
| Shrink Temperature | 80 °C |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Storage/Refrigeration Temperature [Max] | 40 °C |
| Storage/Refrigeration Temperature [Min] | -10 °C, -50 °F |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 84.27 | |
| 2 | $ 77.50 | |||
| 3 | $ 73.80 | |||
| 5 | $ 69.39 | |||
| 7 | $ 66.62 | |||
| 10 | $ 63.81 | |||
| 25 | $ 57.13 | |||
| 50 | $ 56.51 | |||
Description
General part information
Q5-3X-3/8 Series
Heat Shrink Tubing, Flexible 0.354" (8.99mm) 3 to 1 Black 164.0' (50.0m)
