OSTYK42108030
ActiveOn Shore Technology Inc.

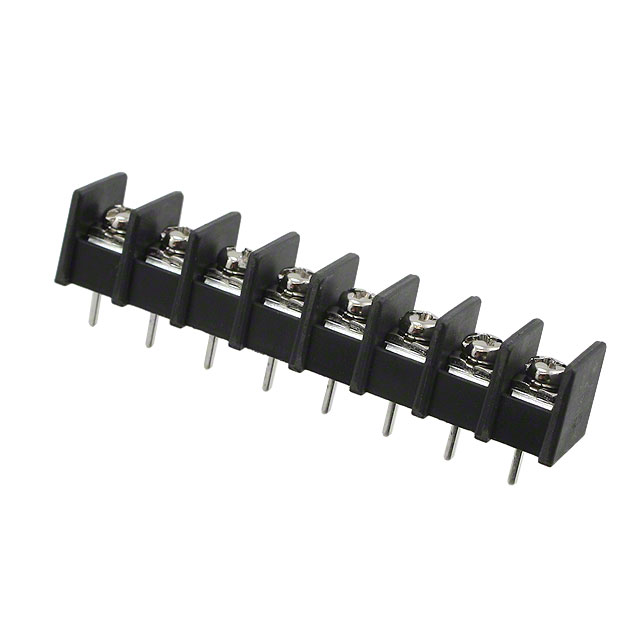

CONN BARRIER STRIP 8CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OSTYK42108030
ActiveOn Shore Technology Inc.
CONN BARRIER STRIP 8CIRC 0.325"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OSTYK42108030 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating (Amps) | 20 A |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Circuits [custom] | 8 |
| Number of Rows | 1 |
| Number of Wire Entries | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 8.26 mm |
| Pitch [x] | 0.325 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Nickel |
| Terminal Screw Material | Steel |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.58 | |
| 10 | $ 1.95 | |||
| 25 | $ 1.81 | |||
| 50 | $ 1.63 | |||
| 100 | $ 1.59 | |||
| 250 | $ 1.39 | |||
| 500 | $ 1.27 | |||
| 1000 | $ 1.15 | |||
| 5000 | $ 1.01 | |||
Description
General part information
OSTYK42 Series
8 Circuit 0.325" (8.26mm) Barrier Block Connector Screws with Captive Plate
