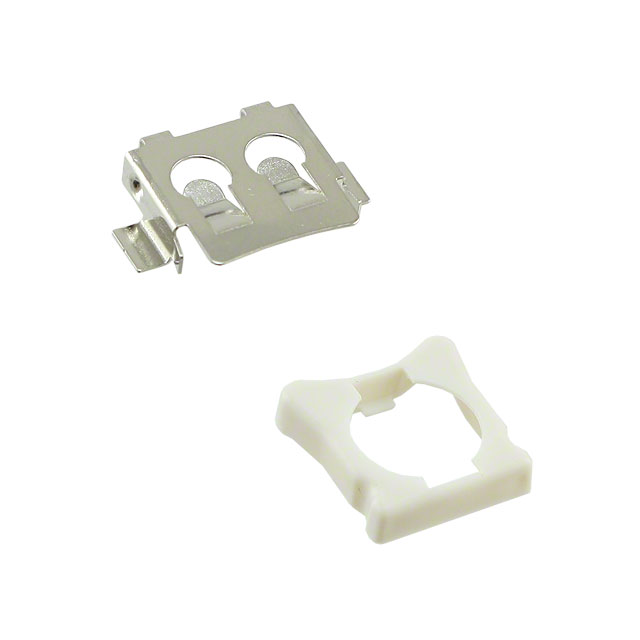

BHX1-1025-SM - BHX1-1025-SM

BHX1-1025-SM

Active
MPD (Memory Protection Devices)

BUTTON AND STRIP BATTERY CONNECTOR ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
BHX1-1025-SM - BHX1-1025-SM

BHX1-1025-SM

Active
MPD (Memory Protection Devices)

BUTTON AND STRIP BATTERY CONNECTOR ROHS

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationBHX1-1025-SM
Height Above Board0.143 in
Height Above Board3.63 mm
Mounting TypePCB, Surface Mount
Number of Cells1
StyleRetainer
Termination StyleSMD (SMT) Tab

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 0.87
10$ 0.73
50$ 0.64
100$ 0.61
250$ 0.56
500$ 0.52
1000$ 0.49
2500$ 0.45
5000$ 0.41
LCSCPiece 1$ 1.38
200$ 0.55
500$ 0.53
1000$ 0.52

Description

General part information

BHX1-1025 Series

Battery Retainer Coin, 10.0mm 1 Cell SMD (SMT) Tab

Documents

Technical documentation and resources

Datasheet

Datasheet
