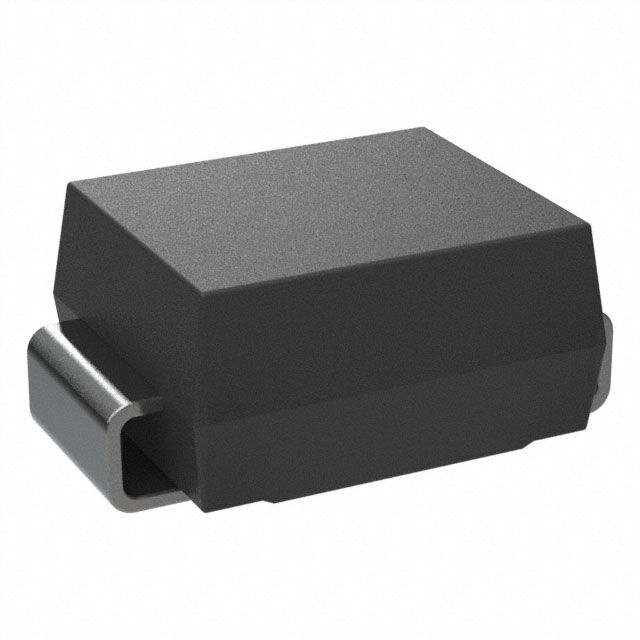

SMBJ130CA - SMBJ58CA

SMBJ130CA

Active
Semtech Corporation

TVS DIODE 130VWM 209VC DO214AA

Deep-Dive with AI

Search across all available documentation for this part.

SMBJ130CA - SMBJ58CA

SMBJ130CA

Active
Semtech Corporation

TVS DIODE 130VWM 209VC DO214AA

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationSMBJ130CA
ApplicationsTelecom
Bidirectional Channels [custom]1
Current - Peak Pulse (10/1000µs)2.9 A
Mounting TypeSurface Mount
Operating Temperature [Max]175 ░C
Operating Temperature [Min]-55 °C
Package / CaseSMB, DO-214AA
Power - Peak Pulse600 W
Power Line ProtectionFalse
Supplier Device PackageSMB
Supplier Device PackageDO-214AA
TypeZener
Voltage - Breakdown (Min) [Min]144 V
Voltage - Clamping (Max) @ Ipp [Max]209 V
Voltage - Reverse Standoff (Typ)130 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.50
1$ 0.40
10$ 0.39
10$ 0.25
100$ 0.23
100$ 0.15
500$ 0.12
500$ 0.22
1000$ 0.10
1000$ 0.15
Digi-Reel® 1$ 0.50
1$ 0.40
10$ 0.25
10$ 0.39
100$ 0.15
100$ 0.23
500$ 0.12
500$ 0.22
1000$ 0.10
1000$ 0.15
Tape & Reel (TR) 3000$ 0.09
3000$ 0.11
3000$ 0.28
6000$ 0.08
6000$ 0.26
9000$ 0.24
9000$ 0.07
15000$ 0.23
15000$ 0.07
21000$ 0.07
21000$ 0.23
30000$ 0.06
75000$ 0.06
150000$ 0.06

Description

General part information

SMBJ130 Series

209V Clamp 2.9A Ipp Tvs Diode Surface Mount DO-214AA (SMB)

Documents

Technical documentation and resources

No documents available
