EDZ1200/6

Active

On Shore Technology Inc.

TERM BLOCK PLUG 6POS STR 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ED Part Number Breakdown

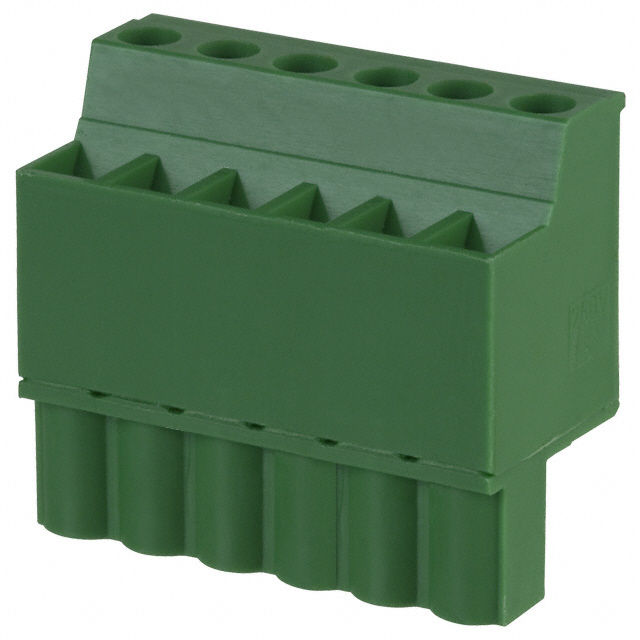

EDZ1200/6

Active

On Shore Technology Inc.

TERM BLOCK PLUG 6POS STR 5.08MM

Deep-Dive with AI

DocumentsDatasheet ED Part Number Breakdown

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDZ1200/6

Color	Green
Contact Material	Copper Tin Alloy
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	6
Termination Style	Screw
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm˛	2.5 mm˛
Wire Strip Length	10 mm

EDZ1200 Series

Part	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Color	Material Flammability Rating	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Voltage - UL	Contact Material	Positions Per Level	Number of Positions	Wire Strip Length	Type	Wire Gauge or Range - mm²	Termination Style	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Wire Gauge or Range - mm˛	Number of Positions
On Shore Technology Inc. EDZ1200/18	Free Hanging (In-Line)	12 AWG	22 AWG	Green	UL94 V-0	4.4 Lb-In	0.5 Nm	0.2 in	5.08 mm	300 V	Copper Tin Alloy	18	18	10 mm	Plug Female Sockets	2.5 mm²	Screw	1	-30 ░C	105 ░C	Polyamide (PA) Nylon
On Shore Technology Inc. EDZ1200/16	Free Hanging (In-Line)	12 AWG	22 AWG	Green	UL94 V-0	4.4 Lb-In	0.5 Nm	0.2 in	5.08 mm	300 V	Copper Tin Alloy	16		10 mm	Plug Female Sockets		Screw	1	-30 ░C	105 ░C	Polyamide (PA) Nylon	2.5 mm˛	16
On Shore Technology Inc. EDZ1200/5	Free Hanging (In-Line)	12 AWG	22 AWG	Green	UL94 V-0	4.4 Lb-In	0.5 Nm	0.2 in	5.08 mm	300 V	Copper Tin Alloy	5		10 mm	Plug Female Sockets		Screw	1	-30 ░C	105 ░C	Polyamide (PA) Nylon	2.5 mm˛
On Shore Technology Inc. EDZ1200/6	Free Hanging (In-Line)	12 AWG	22 AWG	Green	UL94 V-0	4.4 Lb-In	0.5 Nm	0.2 in	5.08 mm	300 V	Copper Tin Alloy	6	6	10 mm	Plug Female Sockets		Screw	1	-30 ░C	105 ░C	Polyamide (PA) Nylon	2.5 mm˛
On Shore Technology Inc. EDZ1200/14	Free Hanging (In-Line)	12 AWG	22 AWG	Green	UL94 V-0	4.4 Lb-In	0.5 Nm	0.2 in	5.08 mm	300 V	Copper Tin Alloy	14	14	10 mm	Plug Female Sockets		Screw	1	-30 ░C	105 ░C	Polyamide (PA) Nylon	2.5 mm˛
On Shore Technology Inc. EDZ1200/10	Free Hanging (In-Line)	12 AWG	22 AWG	Green	UL94 V-0	4.4 Lb-In	0.5 Nm	0.2 in	5.08 mm	300 V	Copper Tin Alloy	10	10	10 mm	Plug Female Sockets		Screw	1	-30 ░C	105 ░C	Polyamide (PA) Nylon	2.5 mm˛
On Shore Technology Inc. EDZ1200/9	Free Hanging (In-Line)	12 AWG	22 AWG	Green	UL94 V-0	4.4 Lb-In	0.5 Nm	0.2 in	5.08 mm	300 V	Copper Tin Alloy	9	9	10 mm	Plug Female Sockets		Screw	1	-30 ░C	105 ░C	Polyamide (PA) Nylon	2.5 mm˛
On Shore Technology Inc. EDZ1200/3	Free Hanging (In-Line)	12 AWG	22 AWG	Green	UL94 V-0	4.4 Lb-In	0.5 Nm	0.2 in	5.08 mm	300 V	Copper Tin Alloy	3		10 mm	Plug Female Sockets		Screw	1	-30 ░C	105 ░C	Polyamide (PA) Nylon	2.5 mm˛
On Shore Technology Inc. EDZ1200/4	Free Hanging (In-Line)	12 AWG	22 AWG	Green	UL94 V-0	4.4 Lb-In	0.5 Nm	0.2 in	5.08 mm	300 V	Copper Tin Alloy	4	4	10 mm	Plug Female Sockets		Screw	1	-30 ░C	105 ░C	Polyamide (PA) Nylon	2.5 mm˛
On Shore Technology Inc. EDZ1200/11	Free Hanging (In-Line)	12 AWG	22 AWG	Green	UL94 V-0	4.4 Lb-In	0.5 Nm	0.2 in	5.08 mm	300 V	Copper Tin Alloy	11	11	10 mm	Plug Female Sockets	2.5 mm²	Screw	1	-30 ░C	105 ░C	Polyamide (PA) Nylon

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 5.87

Description

General part information

EDZ1200 Series

6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) Free Hanging (In-Line)
