56995-501

Active

Laird Thermal Systems, Inc.

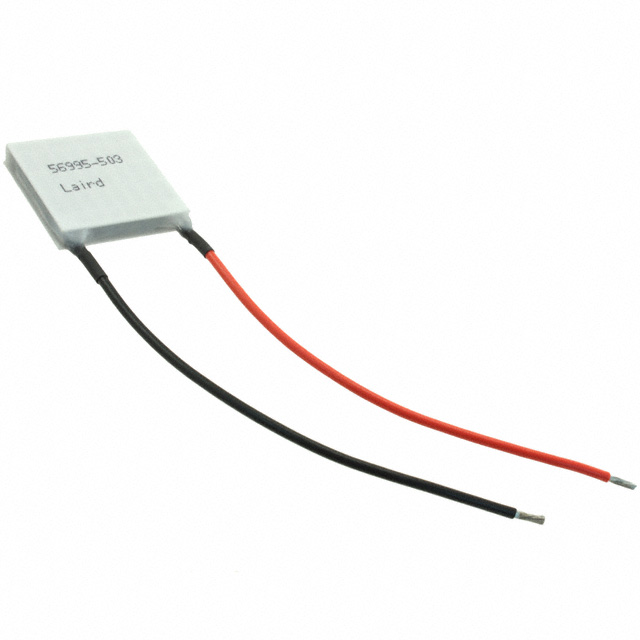

PELTIER MODULE CP2,31,10,L1,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER MODULE CP2,31,10,L1,W4.5

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	Features	Voltage - Max [Max]	Number of Stages	Height [z]	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature	Delta Tmax @ Th	Resistance
Laird Thermal Systems, Inc. 56995-501	9 A	Lead Wires Non-Sealed	3.8 V	1	5.59 mm	18.8 W	29.72 mm	29.72 mm	80 °C	67 °C	350 mOhms
Laird Thermal Systems, Inc. 56995-503	9 A	Lead Wires Sealed - Silicone RTV	3.8 V	1	5.59 mm	18.8 W	29.72 mm	29.72 mm	80 °C	67 °C	350 mOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 18.8W @ 25°C 9 A 80°C
