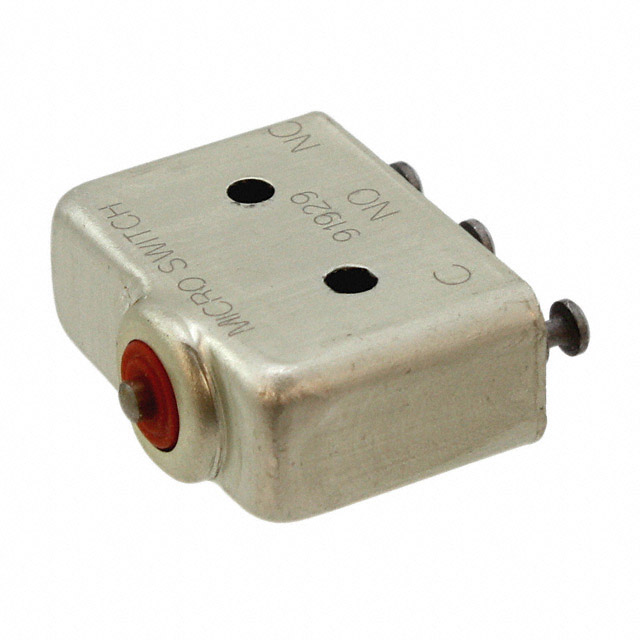

1SE1-T
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1SE1-T
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SE1-T |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Differential Travel | 0.1 mm |
| Differential Travel | 0.004 in |
| Ingress Protection | Waterproof |
| Mounting Type | Chassis Mount |
| Operating Force [Max] | 482 gf |
| Operating Force [Min] | 141 gf |
| Operating Position | 10.8 mm |
| Operating Position | 0.425 " |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -54 °C |
| Overtravel | 0.076 mm |
| Overtravel | 0.003 in |
| Pretravel | 0.05 in |
| Pretravel | 1.27 mm |
| Release Force | 113 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Turret |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 121.76 | |
| 10 | $ 100.91 | |||
| 25 | $ 93.63 | |||
| 50 | $ 88.46 | |||
| 100 | $ 85.07 | |||
Description
General part information
1SE1 Series
Switch SPDT Chassis Mount
