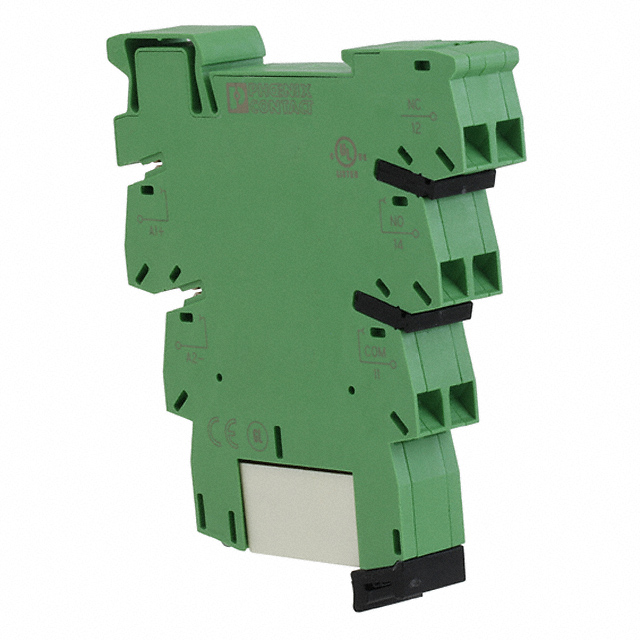

2987079

Obsolete

Phoenix Contact

RELAY GEN PURPOSE SPDT 10A 24V

Search across all available documentation for this part.

Obsolete

Phoenix Contact

RELAY GEN PURPOSE SPDT 10A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2987079

Coil Current	20 mA
Coil Resistance	1.2 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	5 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	11 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Spring Terminal

Part	Relay Type	Contact Form	Release Time	Coil Voltage	Coil Resistance	Contact Material	Coil Current	Mounting Type	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Termination Style	Coil Type	Features	Switching Voltage
Phoenix Contact 2987079	General Purpose	SPDT (1 Form C)	11 ms	24 VDC	1.2 kOhms	Silver Nickel (AgNi)	20 mA	DIN Rail	10 A	-40 °C	70 °C	5 ms	Spring Terminal	Non Latching	Lighted Indicator Socket Included	250 VAC 250 VDC
Phoenix Contact 2987011	General Purpose	SPDT (1 Form C)	11 ms	24 VDC	4706 Ohms	Silver Tin Oxide (AgSnO)	5.1 mA	DIN Rail	6 A	-40 °C	70 °C	8 ms	Spring Terminal	Non Latching	Lighted Indicator Socket Included	250 VAC 250 VDC
Phoenix Contact 2987037	General Purpose	SPDT (1 Form C)	11 ms	72 VDC	24.83 kOhms	Silver Tin Oxide (AgSnO)	2.9 mA	DIN Rail	6 A	-40 °C	70 °C	8 ms	Spring Terminal	Non Latching	Lighted Indicator Socket Included	250 VAC 250 VDC
Phoenix Contact 2987040	General Purpose	SPDT (1 Form C)	4 ms	72 VDC	24 kOhms	Gold (Au) Silver Tin Oxide (AgSnO)	3 mA	DIN Rail	50 mA	-40 °C	70 °C	4 ms	Spring Terminal	Non Latching	Diode Lighted Indicator Socket Included	30 VAC 36 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
