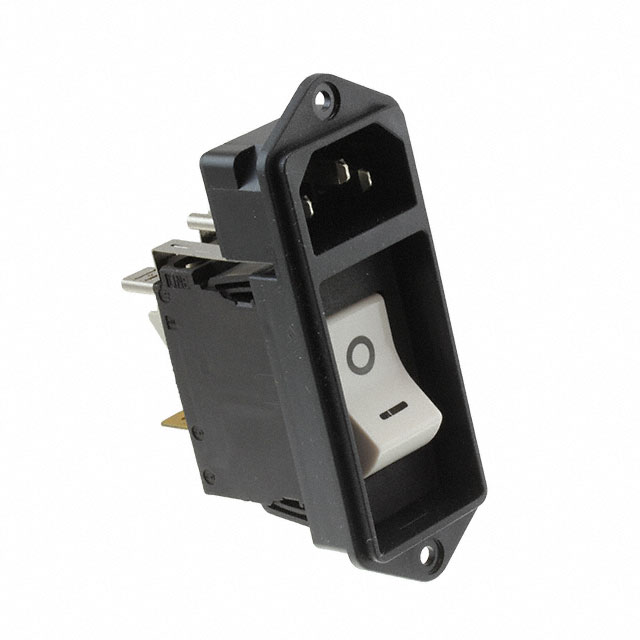

DF11.3697.0010.01

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	DF11.3697.0010.01

Accomodates a Fuse	False
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Circuit Breaker	13 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29 mm
Panel Cutout Dimensions [y]	73.5 mm
Switch Features	Circuit Breaker, Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Current Rating - Circuit Breaker	Current Rating - Appliance Inlet	Ingress Protection	Material Flammability Rating	Filter Type	Mounting Type	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Accomodates a Fuse	Connector Style	Approval Agency	Switch Features	Voltage Rating - Appliance Inlet	Termination	Termination	Termination
SCHURTER Inc. DF11.3697.0010.01	13 A	10 A	IP40	UL94 V-0	Unfiltered - Commercial	Flange Panel Mount	Receptacle Male Blades - Module	29 mm	73.5 mm		IEC 320-C14	cULus ENEC	Circuit Breaker Switch On-Off	250 VAC	0.25 in	6.3 mm	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
