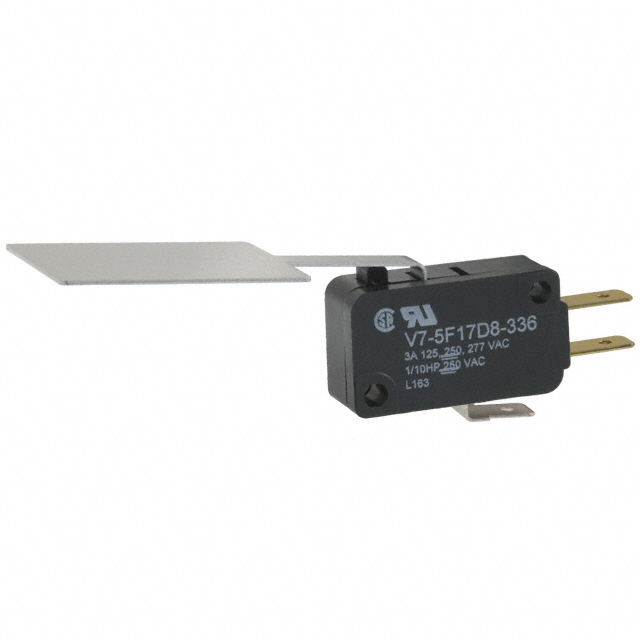

V7-5F17D8-336

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 3A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Differential Travel	Differential Travel	Mechanical Life	Termination Style	Pretravel	Pretravel	Operating Force	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Current Rating (Amps)	Mounting Type	Overtravel	Overtravel	Operating Position	Operating Position	Actuator Type	Circuit
Honeywell Sensing and Productivity Solutions V7-5F17D8-336	On-Mom	2.54 mm	0.1 in	10000000 Cycles	Quick Connect - 0.187" (4.7mm)	0.47 "	11.9 mm	2 gf	125 V	85 °C	-40 °C	100000 Cycles	3 A	Chassis Mount	0.3 in	7.6 mm	0.6 in	15.2 mm	Lever Straight	SPDT
Honeywell Sensing and Productivity Solutions V7-5F23D8-636-1
Honeywell Sensing and Productivity Solutions V7-5F17D8	On-Mom	0.25 mm	0.01 in	10000000 Cycles	Quick Connect - 0.187" (4.7mm)	0.047 in	1.2 mm	15 gf	125 V	85 °C	-40 °C	100000 Cycles	3 A	Chassis Mount	0.05 in	1.27 mm	0.579 in	14.7 mm	Round (Pin Plunger)	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
