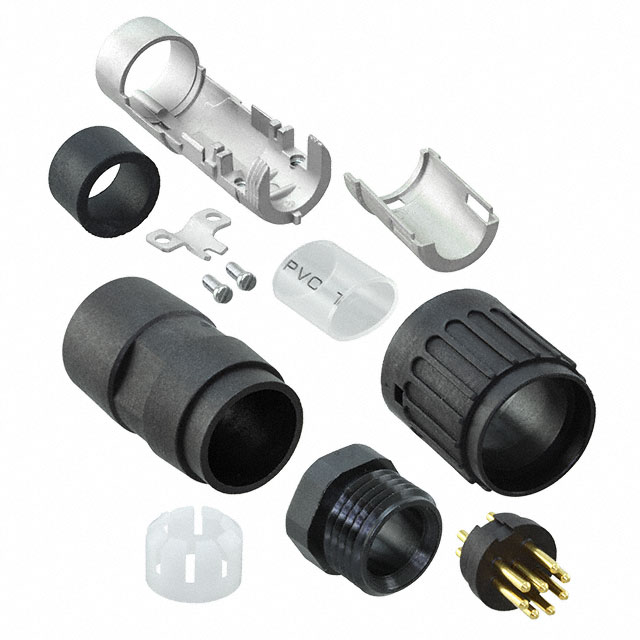

T 3524 528

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Color	Orientation	Number of Positions	Connector Type	Shell Material	Contact Finish - Mating	Ingress Protection	Fastening Type	Current Rating (Amps)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Voltage Rating	Shell Finish	Features	Shell Size - Insert	Contact Size	Type	Contact Shape	Housing Color	Shielding	Contact Type	Material Flammability Rating	Insert Material	Note
Amphenol Tuchel Industrial T 3524 502	Silver	Keyed	8	Male Pins Plug	Die Cast	Silver	IP40	Bayonet Lock	7 A	Free Hanging (In-Line)	100 °C	-40 °C	Metal	250 VDC	Nickel	Cable Clamp Strain Relief	M16-8
Amphenol Tuchel Industrial T 3524 528	Silver	Keyed	8	Male Pins Plug	Die Cast	Gold	IP40	Bayonet Lock	7 A	Free Hanging (In-Line)	100 °C	-40 °C	Metal	250 VDC	Nickel	Cable Clamp Strain Relief	M16-8
Amphenol Tuchel Industrial T 3524 551		Keyed	8	Plug Housing	Die Cast		IP40	Bayonet Lock		Free Hanging (In-Line)	100 °C	-40 °C			Nickel	Cable Clamp Coupling Nut Strain Relief	M16-8	1.5 mm	For Male Pins	Circular	Black Silver	Unshielded	Crimp	UL94 V-0	Thermoplastic	Contacts Not Included
Amphenol Tuchel Industrial T 3524 501	Silver	Keyed	8	Male Pins Plug	Die Cast	Silver	IP40	Bayonet Lock	7 A	Free Hanging (In-Line)	100 °C	-40 °C	Metal	250 VDC	Nickel	Strain Relief	M16-8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.59

General part information

8 Position Circular Connector Plug, Male Pins Solder Cup
