ODB182-24HB

Active

Orion Fans

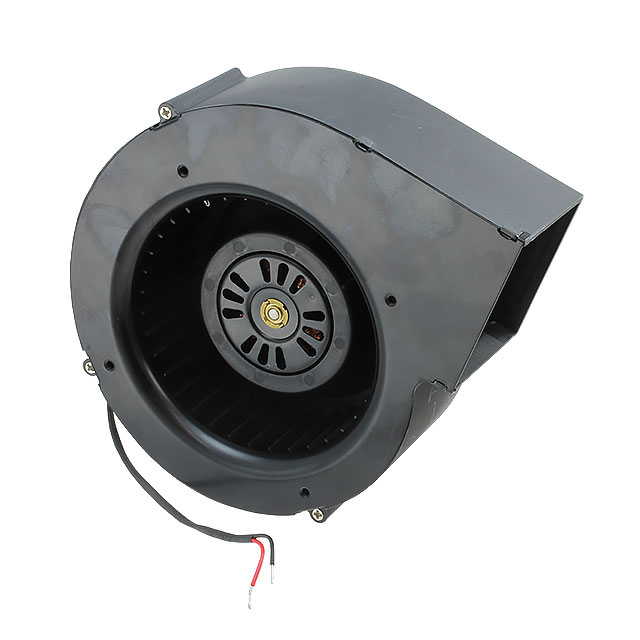

DC BLOWER - 24V 182 X 171 X 82MM

Search across all available documentation for this part.

Active

Orion Fans

DC BLOWER - 24V 182 X 171 X 82MM

Technical Specifications

Parameters and characteristics for this part

Specification	ODB182-24HB

Air Flow	3.81 mł/min
Air Flow	136 CFM
Bearing Type	Ball
Current Rating (Amps)	2.2 A
Fan Type	Blower
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	63 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	2000 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	171 mm
Size / Dimension [z]	182.1 mm
Static Pressure	2.5 in H2O
Static Pressure	622.7 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27 VDC
Voltage Range [Min]	12
Weight	2.5 lbs
Weight	1.1 kg
Width [y]	82 mm

Part	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Fan Type	Bearing Type	Current Rating (Amps)	Static Pressure	Static Pressure	Noise	Material - Frame	Termination	Air Flow	Air Flow	Width [y]	Weight	Weight
Orion Fans ODB182-24HB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	70 °C	70 °C	-10 °C	-10 °C	2000 RPM	182.1 mm	Rectangular/Rounded	171 mm	27 VDC	12	24 VDC	Blower	Ball	2.2 A	2.5 in H2O	622.7 Pa	63 dB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	3.81 mł/min	136 CFM	82 mm	2.5 lbs	1.1 kg

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Rectangular/Rounded - 171mm L x 182.1mm H Ball 136.0 CFM (3.81m³/min) 2 Wire Leads
