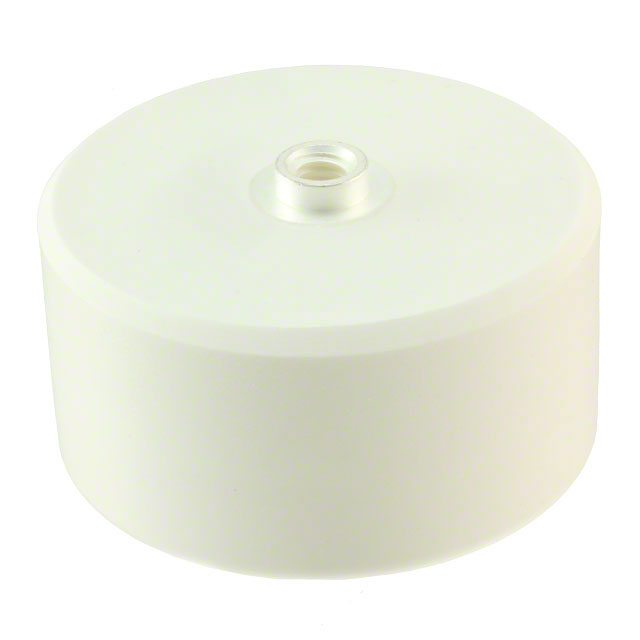

DHS4E4D142MLXB

Obsolete

Murata Power Solutions Inc.

CAP CER 1400PF 20KV N4700 DISK

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CAP CER 1400PF 20KV N4700 DISK

Technical Specifications

Parameters and characteristics for this part

Part	Capacitance	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Temperature Coefficient	Tolerance	Package / Case	Features	Voltage - Rated	Voltage - Rated	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]
Murata Power Solutions Inc. DHS4E4D142MLXB	1400 pF	General Purpose	20 °C	85 °C	Requires Holder	N4700	20 %	Disk Metal Fitting - Threaded	High Voltage	20 kV	20 kV	1.004 " 25.5 mm	1.496 " 38 mm
Murata Power Solutions Inc. DHS4E4D281KC2B	280 pF	General Purpose	20 °C	85 °C	Requires Holder	N4700	10 %	Disk Metal Fitting - Threaded	High Voltage	20 kV	20 kV	1.004 "	0.787 in	20 mm	25.5 mm
Murata Power Solutions Inc. DHS4E4D281MCXB	280 pF	General Purpose	20 °C	85 °C	Requires Holder	N4700	20 %	Disk Metal Fitting - Threaded	High Voltage	20 kV	20 kV	1.004 "	0.787 in	20 mm	25.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1400 pF ±20% 20000V (20kV) Ceramic Capacitor N4700 Disk, Metal Fitting - Threaded
