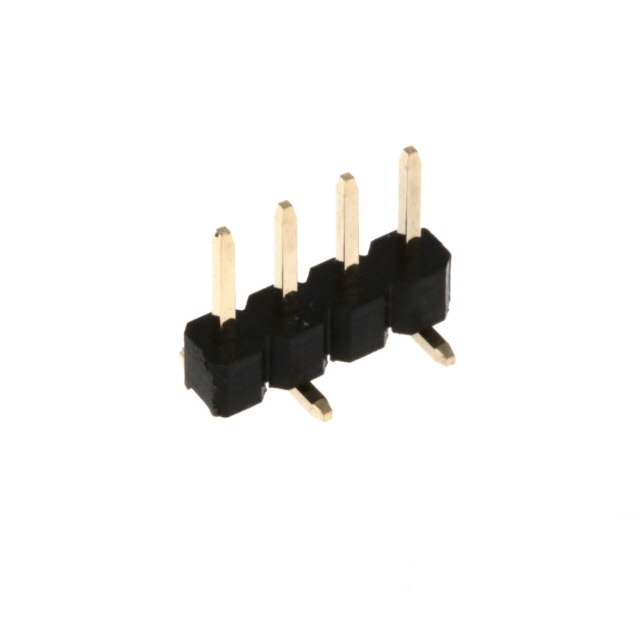

PM20C04VBNN

Active

METZ CONNECT USA Inc.

PIN HEADER, SMT, SINGLE ROW, 2.0

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

PIN HEADER, SMT, SINGLE ROW, 2.0

Technical Specifications

Parameters and characteristics for this part

Specification	PM20C04VBNN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Polyethylene
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder

Part	Contact Material	Number of Positions Loaded	Mounting Type	Number of Rows	Insulation Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Material	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Contact Shape	Shrouding	Number of Positions	Connector Type	Contact Finish Thickness - Mating	Fastening Type	Insulation Height	Insulation Height
METZ CONNECT USA Inc. PM20C04VBNN	Copper Zinc	All	Surface Mount	1	Black	Male Pin	-40 °C	105 ░C	Solder	Polyethylene	Gold	0.079 in	2 mm	4 mm	0.157 in	Square	Unshrouded	4	Header	Flash	Push-Pull	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 4 position 0.079" (2.00mm)
