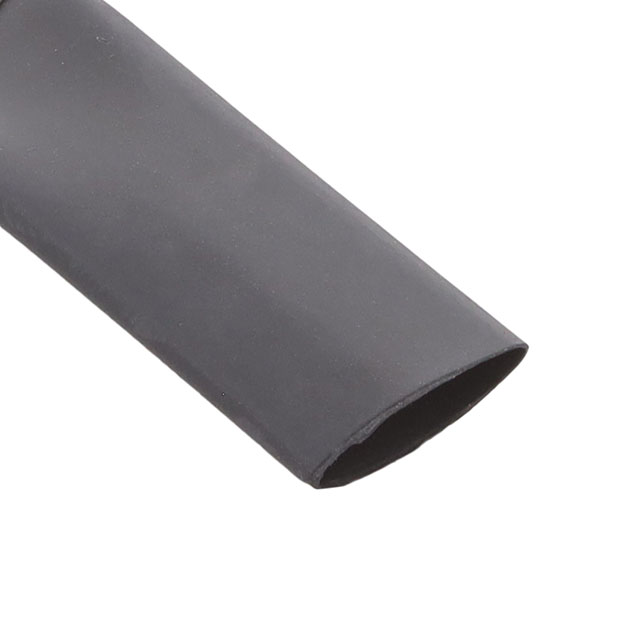

B2 3/8 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

SUMITUBE B2 - HEAT-SHRINK FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sumitube® Solution Guide

B2 3/8 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

SUMITUBE B2 - HEAT-SHRINK FEET

Deep-Dive with AI

DocumentsDatasheet Sumitube® Solution Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B2 3/8 BLACK SPL

Color	Black
Features	UV Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	4.75 mm
Inner Diameter - Recovered [diameter]	0.187 in
Inner Diameter - Supplied [diameter]	0.394 in
Inner Diameter - Supplied [diameter]	10.01 mm
Length	Enter Number of Feet in Order Quantity
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness [custom]	0.025 "
Recovered Wall Thickness [custom]	0.64 mm
Shrink Temperature	90 °C
Shrinkage Ratio	2 to 1
Spool Size	61 m
Spool Size	200 '
Type	Tubing, Flexible

B2 3/8 Series

Part	Material	Color	Type	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Features	Shrinkage Ratio	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Spool Size	Spool Size	Length
Sumitomo Electric Interconnect Products, Inc. B2 3/8 GREEN 4FT	Polyolefin (PO) Irradiated	Green	Tubing Flexible	135 °C	-55 °C	1.22 m	4 ft	Flame Retardant	2 to 1	0.025 "	0.64 mm	90 °C	4.75 mm	0.187 in	0.394 in	10.01 mm
Sumitomo Electric Interconnect Products, Inc. B2 3/8 BLACK SPL	Polyolefin (PO) Irradiated	Black	Tubing Flexible	135 °C	-55 °C			Flame Retardant UV Resistant	2 to 1	0.025 "	0.64 mm	90 °C	4.75 mm	0.187 in	0.394 in	10.01 mm	61 m	200 '	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/8 YELLOW 4FT	Polyolefin (PO) Irradiated	Yellow	Tubing Flexible	135 °C	-55 °C	1.22 m	4 ft	Flame Retardant	2 to 1	0.025 "	0.64 mm	90 °C	4.75 mm	0.187 in	0.394 in	10.01 mm
Sumitomo Electric Interconnect Products, Inc. B2 3/8 BLUE 4FT	Polyolefin (PO) Irradiated	Blue	Tubing Flexible	135 °C	-55 °C	1.22 m	4 ft	Flame Retardant	2 to 1	0.025 "	0.64 mm	90 °C	4.75 mm	0.187 in	0.394 in	10.01 mm
Sumitomo Electric Interconnect Products, Inc. B2 3/8 GREEN SPL	Polyolefin (PO) Irradiated	Green	Tubing Flexible	135 °C	-55 °C			Flame Retardant	2 to 1	0.025 "	0.64 mm	90 °C	4.75 mm	0.187 in	0.394 in	10.01 mm	61 m	200 '	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/8 WHITE SPL	Polyolefin (PO) Irradiated	White	Tubing Flexible	135 °C	-55 °C			Flame Retardant	2 to 1	0.025 "	0.64 mm	90 °C	4.75 mm	0.187 in	0.394 in	10.01 mm	61 m	200 '	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/8 YELLOW SPL	Polyolefin (PO) Irradiated	Yellow	Tubing Flexible	135 °C	-55 °C			Flame Retardant	2 to 1	0.025 "	0.64 mm	90 °C	4.75 mm	0.187 in	0.394 in	10.01 mm	61 m	200 '	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/8 WHITE 4FT	Polyolefin (PO) Irradiated	White	Tubing Flexible	135 °C	-55 °C	1.22 m	4 ft	Flame Retardant	2 to 1	0.025 "	0.64 mm	90 °C	4.75 mm	0.187 in	0.394 in	10.01 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 1.21
		2	$ 1.11
		3	$ 1.06
		5	$ 1.00
		7	$ 0.96
		10	$ 0.92
		25	$ 0.82
		50	$ 0.76
		100	$ 0.70

Description

General part information

B2 3/8 Series

Heat Shrink Tubing, Flexible 0.394" (10.01mm) 2 to 1 Black Enter Number of Feet in Order Quantity
