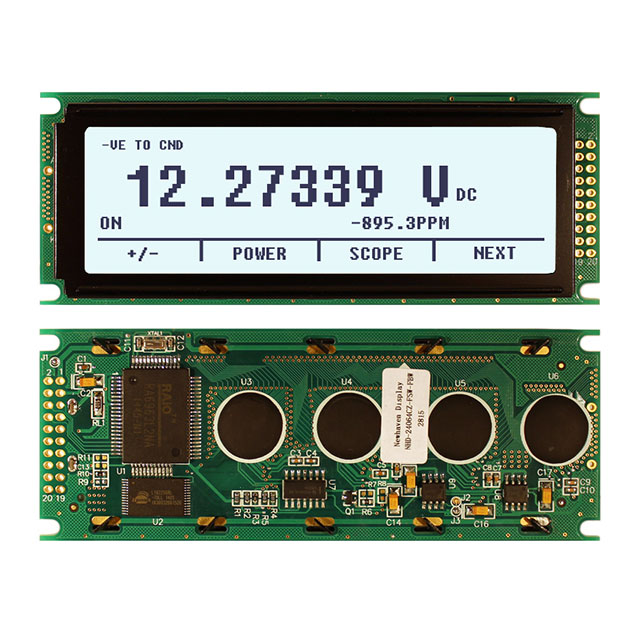

NHD-24064CZ-FSW-FBW

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 240X64 WH TRANSFL

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 240X64 WH TRANSFL

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-24064CZ-FSW-FBW

Background Color	White
Background Color	Black
Backlight	LED - White
Controller Type	T6963C
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pixels [x]	240 pixels
Dot Pixels [y]	64
Dot Size [x]	0.34 mm
Dot Size [y]	0.34 mm
Graphics Color	Black
Interface	Parallel, 8-Bit
Viewing Area [x]	96 mm
Viewing Area [y]	30 mm

Part	Graphics Color	Controller Type	Background Color	Background Color	Interface	Dot Pitch [y]	Dot Pitch [x]	Dot Pixels [y]	Dot Pixels [x]	Display Type	Backlight	Dot Size [custom]	Dot Size [custom]	Display Mode	Viewing Area [x]	Viewing Area [y]	Dot Size [x]	Dot Size [y]
Newhaven Display Intl NHD-24064WG-ATMI-VZ#	Blue White	T6963C	Blue	White	Parallel 8-Bit	0.53 mm	0.53 mm	64	240 pixels	STN - Super-Twisted Nematic	LED - White	0.49 mm	0.49 mm	Transmissive	133 mm	39 mm
Newhaven Display Intl NHD-24064WG-ASFH-VZ#	White		Black	White - Inverted	Parallel 8-Bit	0.53 mm	0.53 mm	64	240 pixels	FSTN - Film Super-Twisted Nematic	LED - White	0.49 mm	0.49 mm	Transflective	133 mm	39 mm
Newhaven Display Intl NHD-24064CZ-FSW-FBW	Black	T6963C	White	Black	Parallel 8-Bit			64	240 pixels	FSTN - Film Super-Twisted Nematic	LED - White			Transflective	96 mm	30 mm	0.34 mm	0.34 mm
Newhaven Display Intl NHD-24064CZ-NSW-BBW	Blue White	T6963C	Blue	White	Parallel 8-Bit			64	240 pixels	STN - Super-Twisted Nematic	LED - White			Transmissive	96 mm	30 mm	0.34 mm	0.34 mm
Newhaven Display Intl NHD-24064WG-ATFH-VZ#	Black	T6963C	White	Black	Parallel 8-Bit	0.53 mm	0.53 mm	64	240 pixels	FSTN - Film Super-Twisted Nematic	LED - White	0.49 mm	0.49 mm	Transflective	133 mm	39 mm
Newhaven Display Intl NHD-24064CZ-FSW-GBW	Blue	T6963C	Gray		Parallel 8-Bit			64	240 pixels	STN - Super-Twisted Nematic	LED - White			Transflective	96 mm	30 mm	0.34 mm	0.34 mm
Newhaven Display Intl NHD-24064WG-ATGH-VZ#	Blue	T6963C	Gray		Parallel 8-Bit	0.53 mm	0.53 mm	64	240 pixels	STN - Super-Twisted Nematic	LED - White	0.49 mm	0.49 mm	Transflective	133 mm	39 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transflective Black (White - Inverted) FSTN - Film Super-Twisted Nematic Parallel, 8-Bit 240 x 64
