S9131-45R - S9131-45R

S9131-45R

Active
Harwin Inc.

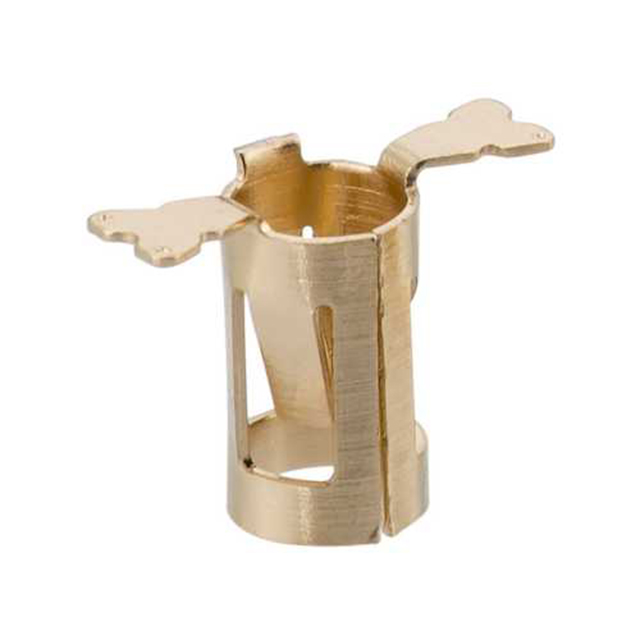

TERMINAL, TOP ENTRY, SOCKET, 2.6MM, SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsS9131-45R DrawingDatasheet+4
S9131-45R - S9131-45R

S9131-45R

Active
Harwin Inc.

TERMINAL, TOP ENTRY, SOCKET, 2.6MM, SMD

Deep-Dive with AI

DocumentsS9131-45R DrawingDatasheet+4

Technical Specifications

Parameters and characteristics for this part

SpecificationS9131-45R
Accepts Pin Diameter1.3 mm, 0.8 mm
Accepts Pin Diameter [Max]0.051 in
Accepts Pin Diameter [Min]0.031 in
Contact FinishGold
Contact MaterialBeryllium Copper
Insertion Force [Max]6 N
Insertion Force [Min]3 N
Length - Overall [x]4.06 mm
Length - Overall [x]0.16 in
Mounting Hole Diameter [diameter]0.102 in
Mounting Hole Diameter [diameter]2.59 mm
Operating Temperature [Max]125 °C
Operating Temperature [Min]-50 °C
Pin Hole Diameter [diameter]2 mm
Pin Hole Diameter [diameter]0.079 in
Socket Depth2.67 mm
Socket Depth0.105 in
Tail TypeNo Tail
TerminationSurface Mount
