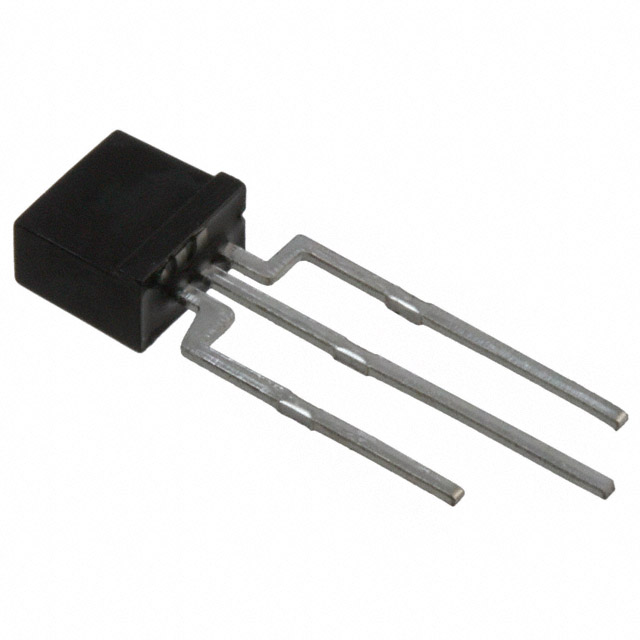

PT2559B/L2-F

Active

Everlight Electronics Co Ltd

SENSOR PHOTO 940NM SIDE VIEW RAD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

SENSOR PHOTO 940NM SIDE VIEW RAD

Technical Specifications

Parameters and characteristics for this part

Specification	PT2559B/L2-F

Current - Collector (Ic) (Max) [Max]	20 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Side View
Package / Case	Radial, Side View, 3 Lead
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Current - Dark (Id) (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Wavelength	Mounting Type	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]
Everlight Electronics Co Ltd PT2559B/L2/H2-F	100 nA	20 mA	3 Lead Radial Side View	-25 °C	85 °C	940 nm	Through Hole	Side View	30 V
Everlight Electronics Co Ltd PT2559B/L2-F	100 nA	20 mA	3 Lead Radial Side View	-25 °C	85 °C	940 nm	Through Hole	Side View	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1500	$ 0.14

General part information

Phototransistors 940nm Side View Radial, 3 Lead, Side View
