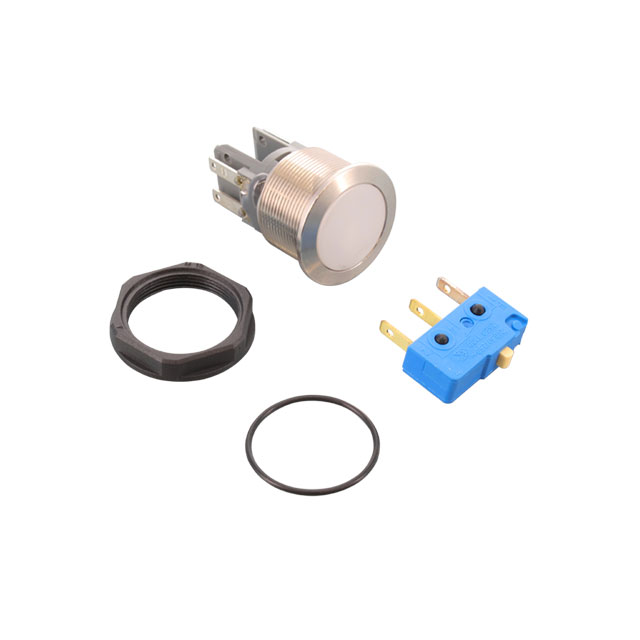

MSM19-NXCSA10-SNCCWTNF-AIRGB024-Q0000-S

Obsolete

SCHURTER Inc.

MSM SERIES 19MM METAL LINE SWITC

Deep-Dive with AI

Search across all available documentation for this part.

MSM19-NXCSA10-SNCCWTNF-AIRGB024-Q0000-S

Obsolete

SCHURTER Inc.

MSM SERIES 19MM METAL LINE SWITC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MSM19-NXCSA10-SNCCWTNF-AIRGB024-Q0000-S

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	200000 Cycles
Features	Ceramic Actuator
Illumination Type, Color	Red, LED, Blue, Green
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	30 V

MSM19-NX Series

Part	Illumination Voltage (Nominal)	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Actuator Marking	Illumination Type, Color	Actuator Type	Circuit	Voltage Rating - DC	Features	Mounting Type	Color - Actuator/Cap	Electrical Life	Mechanical Life	Panel Cutout Dimensions [diameter]	Ingress Protection	Type	Voltage Rating - AC
SCHURTER Inc. MSM19-NXCSA10-SNCCWTNF-AIRGB024-Q0000-S	24 V	On-Mom	-25 °C	85 °C	100 mA	Quick Connect - 0.110" (2.8mm)	No Marking	Blue Green LED Red	Button Flush Round	SPDT	30 V	Ceramic Actuator	Panel Mount Front	Clear	200000 Cycles	1500000 Cycles	19.1 mm	IP40	Anti-Vandal Illuminated
SCHURTER Inc. MSM19-NXDP05A-SNCSNCNF-RI0BL024-Q0000-S	24 V	On-Mom	-25 °C	85 °C	5 A	Quick Connect - 0.110" (2.8mm)	No Marking	Blue LED	Button Flush Round	DPDT			Panel Mount Front	Silver	200000 Cycles	1500000 Cycles	19.1 mm	IP40	Anti-Vandal Illuminated	125 V
SCHURTER Inc. MSM19-NX0005A-SNCSNCNF-RI0RD024-Q0000-S	24 V	On-Mom	-25 °C	85 °C	5 A	Quick Connect - 0.110" (2.8mm)	No Marking	LED Red	Button Flush Round	SPDT			Panel Mount Front	Silver	200000 Cycles	1500000 Cycles	19.1 mm	IP40	Anti-Vandal Illuminated	125 V
SCHURTER Inc. MSM19-NX0010A-SNCSNCNF-RI0RD024-Q0000-S	24 V	On-Mom	-25 °C	85 °C	10 A	Quick Connect - 0.110" (2.8mm)	No Marking	LED Red	Button Flush Round	SPDT			Panel Mount Front	Silver	50000 Cycles	1500000 Cycles	19.1 mm	IP40	Anti-Vandal Illuminated	250 V
SCHURTER Inc. MSM19-NX00A10-SNCSNCNF-RI0RD024-Q0000-S	24 V	On-Mom	-25 °C	85 °C	100 mA	Quick Connect - 0.110" (2.8mm)	No Marking	LED Red	Button Flush Round	SPDT	30 V		Panel Mount Front	Silver	200000 Cycles	1500000 Cycles	19.1 mm	IP40	Anti-Vandal Illuminated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MSM19-NX Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
