C6RRS-1618M

Active

CW Industries

DIP CABLE - CDR16S/AE16M/CDR16S

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDR16S/AE16M/CDR16S

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Cable Termination	Connector Type	Shielding	Contact Finish	Usage	Features	Pitch - Cable	Pitch - Cable	Length	Length	Length	Length [x]	Length [x]	Color	Number of Positions
CW Industries C6RRS-1606G	2	16	2.54 µm	100 µin	0.1 in	2.54 mm	IDC	DIP to DIP	Unshielded	Tin	Board In Socket (0.3")	Strain Relief	0.05 "	1.27 mm	152.4 mm	6 "	0.5 '
CW Industries C6RRS-1636G	2	16	2.54 µm	100 µin	0.1 in	2.54 mm	IDC	DIP to DIP	Unshielded	Tin	Board In Socket (0.3")	Strain Relief	0.05 "	1.27 mm				3 ft	914.4 mm
CW Industries C6RRS-1618G	2	16	2.54 µm	100 µin	0.1 in	2.54 mm	IDC	DIP to DIP	Unshielded	Tin	Board In Socket (0.3")	Strain Relief	0.05 "	1.27 mm				1.5 ft	457.2 mm
CW Industries C6RRS-1618M	2	16	2.54 µm	100 µin	0.1 in	2.54 mm	IDC	DIP to DIP	Unshielded	Tin	Board In Socket (0.3")	Strain Relief	0.05 "	1.27 mm				1.5 ft	457.2 mm	Multiple Ribbon
CW Industries C6RRS-1418G	2		2.54 µm	100 µin	0.1 in	2.54 mm	IDC	DIP to DIP	Unshielded	Tin	Board In Socket (0.3")	Strain Relief	0.05 "	1.27 mm				1.5 ft	457.2 mm		14
CW Industries C6RRS-1436M	2		2.54 µm	100 µin	0.1 in	2.54 mm	IDC	DIP to DIP	Unshielded	Tin	Board In Socket (0.3")	Strain Relief	0.05 "	1.27 mm				3 ft	914.4 mm	Multiple Ribbon	14
CW Industries C6RRS-1636M	2	16	2.54 µm	100 µin	0.1 in	2.54 mm	IDC	DIP to DIP	Unshielded	Tin	Board In Socket (0.3")	Strain Relief	0.05 "	1.27 mm				3 ft	914.4 mm	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

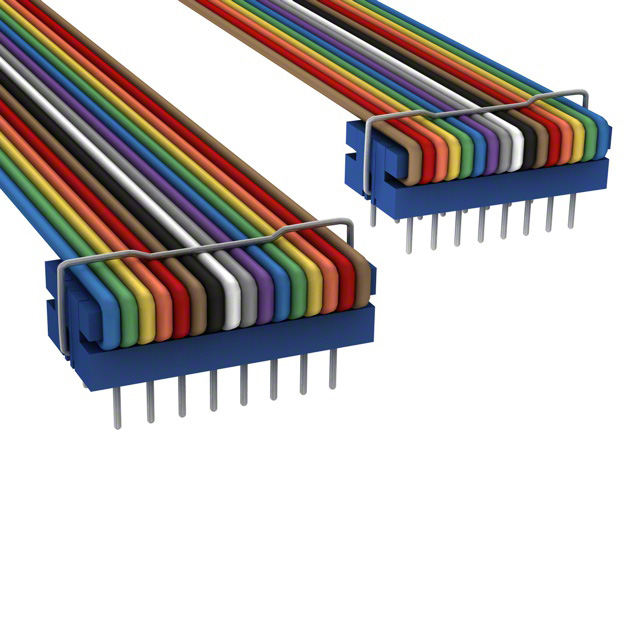

16 Position Cable Assembly Rectangular DIP to DIP 1.50' (457.20mm)

Technical documentation and resources
