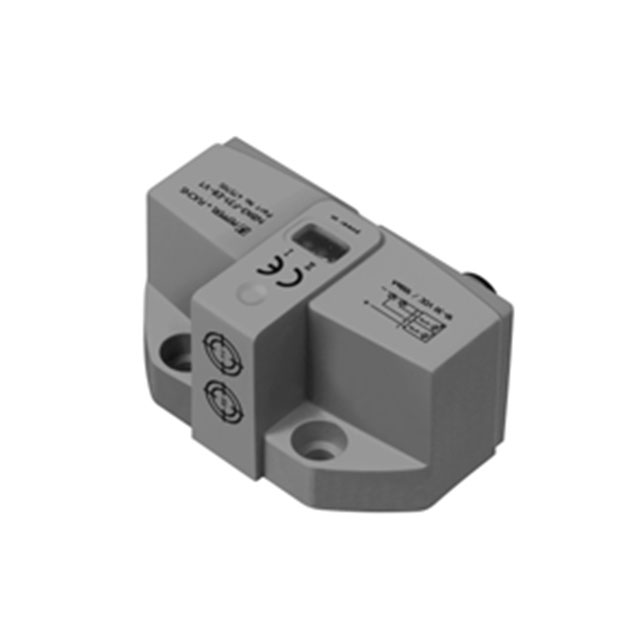

NBN3-F31-E8-V1

Active

PEPPERL+FUCHS

INDUCTIVE SEN 3MM PNP

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 3MM PNP

Technical Specifications

Parameters and characteristics for this part

Specification	NBN3-F31-E8-V1

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Flange Mount
Sensing Distance	3 mm
Sensing Distance	0.118 in
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Indicator [custom]	Sensing Distance	Sensing Distance	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Material - Body	Sensor Type	Ingress Protection	Output Type
PEPPERL+FUCHS NBN3-F31-E8-V1	Connector	30 VDC	10 VDC	Flange Mount	LED	3 mm	0.118 in	Unshielded	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Inductive	IP67	PNP-NO 3-Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 3MM PNP
