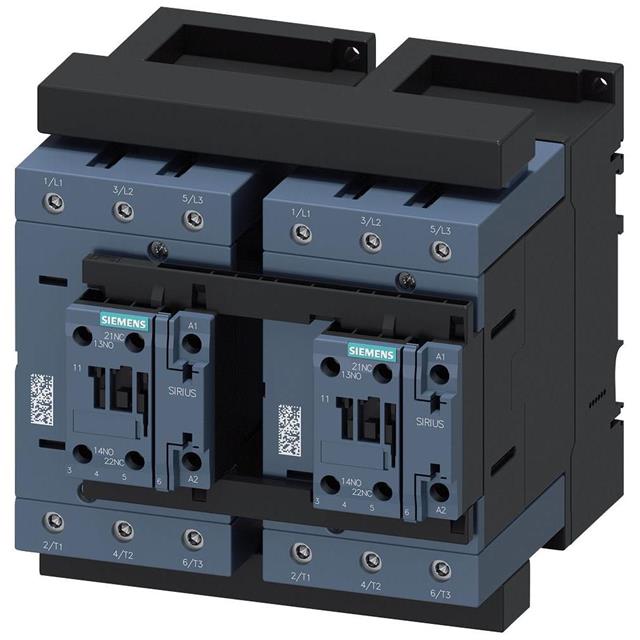

3RA23458XB301NB3

Active

Siemens

REV. CON. ASS.. AC3:37KW. 20-33V

Search across all available documentation for this part.

Active

Siemens

REV. CON. ASS.. AC3:37KW. 20-33V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Voltage	Features	Operating Temperature	Contact Form	Must Operate Voltage	Mounting Type	Contact Rating (Current)	Termination Style	Switching Voltage [Max]	Coil Power	Coil Voltage [Max]	Coil Voltage [Min]	Operating Temperature [Min]	Operating Temperature [Max]
Siemens 3RA23458XB301AL2	230 VAC	Auxiliary Contacts	60 °C	3PST-NO (3 Form A)	195.5 VAC	Chassis Mount DIN Rail	80 A	Screw Terminal	400 VAC	296 VA
Siemens 3RA23458XB301NB3		Auxiliary Contacts		3PST-NO (3 Form A)		Chassis Mount DIN Rail	80 A	Screw Terminal	400 VAC	76 W	33 VAC/DC	20 VAC/DC	-25 °C	60 °C
Siemens 3RA23458XB301AG2	110 VAC/DC	Auxiliary Contacts	60 °C	3PST-NO (3 Form A)	93.5 VAC	Chassis Mount DIN Rail	80 A	Screw Terminal	400 VAC	296 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1243.72

General part information

REV. CON. ASS.. AC3:37KW. 20-33V
