9443-7563-010

Active

Radiall USA, Inc.

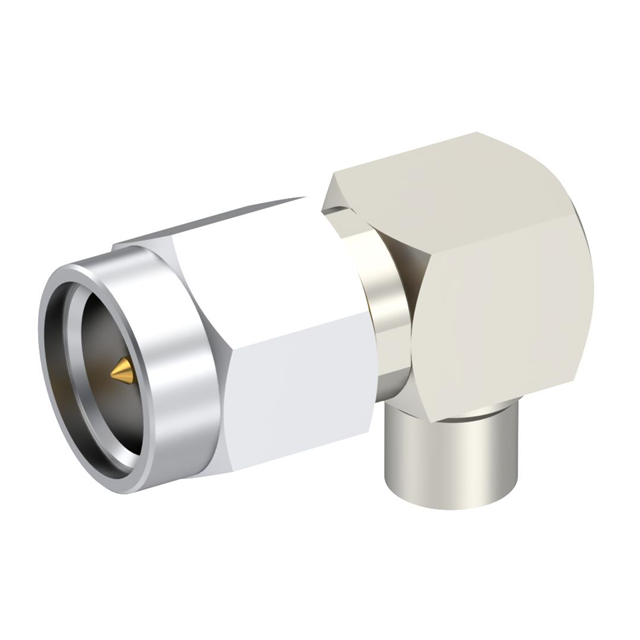

SMA / RIGHT ANGLE PLUG MALE SOLD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / RIGHT ANGLE PLUG MALE SOLD

Technical Specifications

Parameters and characteristics for this part

Specification	9443-7563-010

Body Finish	Nickel
Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	350 V

Part	Voltage Rating	Body Finish	Impedance	Center Contact Material	Mounting Type	Contact Termination	Body Material	Shield Termination	Connector Type	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Dielectric Material	Mating Cycles	Housing Color	Center Contact Plating	Connector Style	Number of Ports
Radiall USA, Inc. 9443-7563-010	350 V	Nickel	50 Ohms	Beryllium Copper	Free Hanging (In-Line) Right Angle	Solder	Stainless Steel	Solder	Male Pin Plug	RG-405 (.085" Semi Rigid)	-65 ░C	165 °C	18 GHz	Polytetrafluoroethylene (PTFE)	500	Silver	Gold	SMA	1
Radiall USA, Inc. 9443-7563-009	500 V	Nickel	50 Ohms	Beryllium Copper	Free Hanging (In-Line) Right Angle	Solder	Stainless Steel	Solder	Male Pin Plug		-65 ░C	165 °C	18 GHz	Polytetrafluoroethylene (PTFE)	500	Silver	Gold	SMA	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 19.38

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
