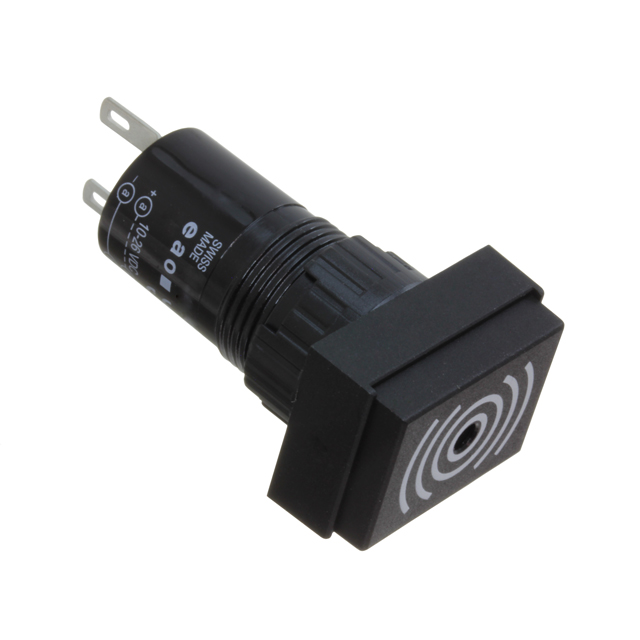

31-801.002

Active

EAO

BUZZER - 0.945" L X 0.709" W SMD

Search across all available documentation for this part.

Active

EAO

BUZZER - 0.945" L X 0.709" W SMD

Technical Specifications

Parameters and characteristics for this part

Specification	31-801.002

Driver Circuitry	Internally Driven, Indicator
Height - Seated (Max) [Max]	1.831 in
Height - Seated (Max) [Max]	46.5 mm
Ingress Protection	IP40
Input Type	DC
Mounting Type	Surface Mount
Port Location	Top
Size / Dimension [x]	24 mm
Size / Dimension [x]	0.945 in
Size / Dimension [y]	18 mm
Size / Dimension [y]	0.709 "
Termination	Solder Tabs

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Driver Circuitry	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ingress Protection	Port Location	Mounting Type	Input Type
EAO 31-801.002	18 mm	0.709 "	24 mm	0.945 in	Indicator Internally Driven	Solder Tabs	1.831 in	46.5 mm	IP40	Top	Surface Mount	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Indicator, Internally Driven Surface Mount Solder Tabs
