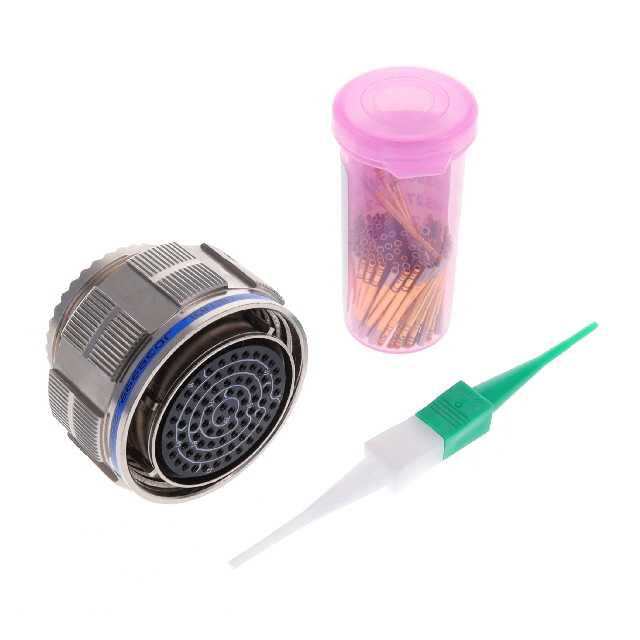

D38999/26FG35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 79POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26FG35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 79POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26FG35SN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	79
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	21
Shell Size, MIL	G
Shielding	Shielded
Termination	Crimp

D38999/26FG Series

Part	Shell Size, MIL	Connector Type	Housing Color	Features	Type	Contact Type	Number of Positions	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Contact Shape	Shell Finish	Contact Size	Grade	Shielding	Ingress Protection	Note	Shell Size - Insert	Mounting Type	Qualification	Number of Positions	Applications	Contact Finish - Mating	Contact Material	Color	Termination	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Backshell Material, Plating	Insert Material
Amphenol Aerospace Operations D38999/26FG11PB-LC	G	Plug Housing	Silver	Coupling Nut Self Locking	For Male Pins	Crimp	11	B	-65 ░C	200 °C	Aluminum	Circular	Electroless Nickel	12	Military	Shielded	Environment Resistant	Contacts Not Included	21-11	Free Hanging (In-Line)	MIL-DTL-38999 Series III
Amphenol Aerospace Operations D38999/26FG16AB	G	Plug Housing	Silver	Coupling Nut Self Locking	For Male Pins	Crimp		B	-65 ░C	200 °C	Aluminum	Circular	Electroless Nickel	16	Military	Shielded	Environment Resistant	Contacts Not Included	21-16	Free Hanging (In-Line)	MIL-DTL-38999 Series III	16
Amphenol Aerospace Operations D38999/26FG11SN	G	Female Sockets Plug		Coupling Nut			11	N	-65 ░C	200 °C	Aluminum		Electroless Nickel		Military	Shielded	Environment Resistant		21-11	Free Hanging (In-Line)	MIL-DTL-38999 Series III		Aerospace Aviation Marine Military	Gold	Copper Alloy	Silver	Crimp	Metal	1.27 µm	50 µin
Amphenol Aerospace Operations D38999/26FG35SN	G	Female Sockets Plug		Coupling Nut			79	N	-65 ░C	200 °C	Aluminum		Electroless Nickel		Military	Shielded	Environment Resistant			Free Hanging (In-Line)	MIL-DTL-38999 Series III		Aerospace Aviation Marine Military	Gold	Copper Alloy	Silver	Crimp	Metal	1.27 µm	50 µin	21	35
Amphenol Aerospace Operations D38999/26FG35PN-UWSB4	G	Male Pins Plug		Backshell Coupling Nut Self Locking Shielding Device Shrink Boot			79	N	-65 ░C	200 °C	Aluminum		Electroless Nickel		Military	Shielded	Environment Resistant			Free Hanging (In-Line)	MIL-DTL-38999 Series III		Aviation Marine Military	Gold	Copper Alloy	Silver	Crimp	Metal	1.27 µm	50 µin	21	35	Metal
Amphenol Aerospace Operations D38999/26FG41JN	G	Female Sockets Plug		Coupling Nut			41	N	-65 ░C	200 °C	Aluminum		Electroless Nickel		Military	Shielded	Environment Resistant			Free Hanging (In-Line)	MIL-DTL-38999 Series III		Aerospace Aviation Military	Gold	Copper Alloy	Silver	Crimp	Metal	2.54 çm	100 çin	21	41
Amphenol Aerospace Operations D38999/26FG41JB	G	Female Sockets Plug		Coupling Nut Self Locking			41	B	-65 ░C	200 °C	Aluminum		Electroless Nickel		Military	Shielded	Environment Resistant			Free Hanging (In-Line)	MIL-DTL-38999 Series III		Aviation Marine Military	Gold	Copper Alloy	Silver	Crimp	Metal	2.54 çm	100 çin	21	41
Amphenol Aerospace Operations D38999/26FG41PN	G	Male Pins Plug		Self Locking			41	N	-65 ░C	200 °C	Aluminum		Electroless Nickel		Military	Shielded	Environment Resistant			Free Hanging (In-Line)	MIL-DTL-38999 Series III		Aerospace Aviation Marine Military	Gold	Copper Alloy	Silver	Crimp	Metal	1.27 µm	50 µin	21	41		Thermoplastic
Amphenol Aerospace Operations D38999/26FG16HB-LC	G	Plug Housing	Silver	Coupling Nut Self Locking	For Male Pins	Crimp		B	-65 ░C	200 °C	Aluminum	Circular	Electroless Nickel	16	Military	Shielded	Environment Resistant	Contacts Not Included	21-16	Free Hanging (In-Line)	MIL-DTL-38999 Series III	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 114.09
		1	$ 447.25
		10	$ 429.62
		10	$ 98.88
		25	$ 290.11
		25	$ 87.24
		50	$ 78.06
		100	$ 68.45

Description

General part information

D38999/26FG Series

79 Position Circular Connector Plug, Female Sockets Crimp
