M55339/02-30001

Active

Amphenol SV Microwave

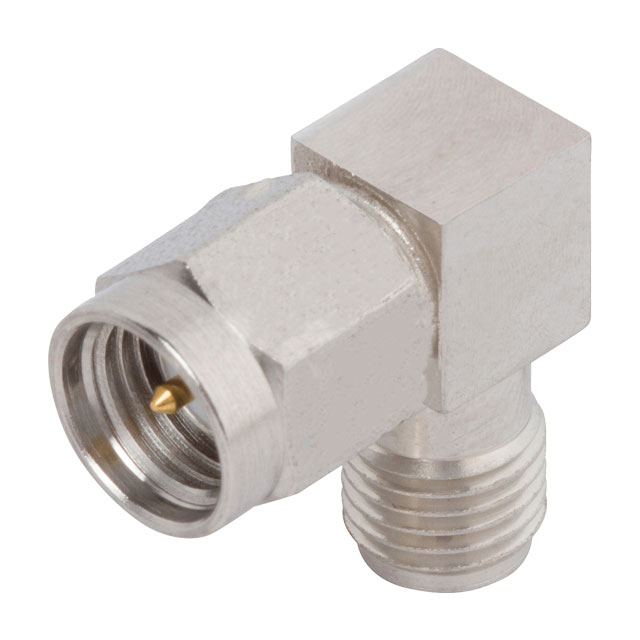

CONN ADAPT JACK-PLUG SMA 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M55339/02-30001

Active

Amphenol SV Microwave

CONN ADAPT JACK-PLUG SMA 50 OHM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M55339/02-30001

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Right Angle

M55339 Series

Part	Center Contact Plating	Body Material	Adapter Type	Dielectric Material	Convert To (Adapter End)	Conversion Type	Center Contact Material	Center Gender	Adapter Series	Frequency - Max [Max]	Impedance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Style	Mating Cycles	Convert From (Adapter End)	Mounting Feature	Includes	Body Finish	Fastening Type
Amphenol SV Microwave M55339/53-30001	Gold	Stainless Steel	Plug to Plug	Polytetrafluoroethylene (PTFE)	Male Pin SMA Plug	Same Series	Beryllium Copper	Male to Male	SMA to SMA	12.4 GHz	50 Ohms	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	Right Angle	500	SMA Plug Male Pin
Amphenol SV Microwave M55339/34-30001	Gold	Stainless Steel	Jack to Jack	Polytetrafluoroethylene (PTFE)	Female Socket TNC Jack	Same Series	Beryllium Copper	Female to Female	TNC to TNC	11 GHz	50 Ohms		-65 ░C	165 °C	Straight	500	TNC Jack Female Socket	Bulkhead	1 Connector 1 Lockwasher 1 Nut
Amphenol SV Microwave M55339/02-30001	Gold	Stainless Steel	Plug to Jack	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	Same Series	Beryllium Copper		SMA to SMA	12.4 GHz	50 Ohms	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	Right Angle	500	SMA Plug Male Pin
Amphenol SV Microwave M55339/28-30001	Gold	Stainless Steel	Jack to Jack	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	Same Series	Beryllium Copper	Female to Female	SMA to SMA	12.4 GHz	50 Ohms		-65 ░C	165 °C	Straight	500	Female Socket SMA Jack	Bulkhead	1 Connector 1 Lockwasher 1 Nut
Amphenol SV Microwave M55339/32-00001	Gold	Brass	Plug to Jack	Polytetrafluoroethylene (PTFE)	Male Pin TNC Plug	Same Series	Beryllium Copper		TNC to TNC	11 GHz	50 Ohms	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	Right Angle	500	TNC Jack Female Socket			Silver
Amphenol SV Microwave M55339/44-30001	Gold	Stainless Steel	Plug to Jack	Polytetrafluoroethylene (PTFE)	BNC Plug Male Pin	Between Series	Beryllium Copper		BNC to SMA	4 GHz	50 Ohms	Free Hanging (In-Line)			Straight		Female Socket SMA Jack				Bayonet Lock Threaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.78
		10	$ 55.78
		25	$ 53.63
		50	$ 51.84
		100	$ 48.98

Description

General part information

M55339 Series

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
