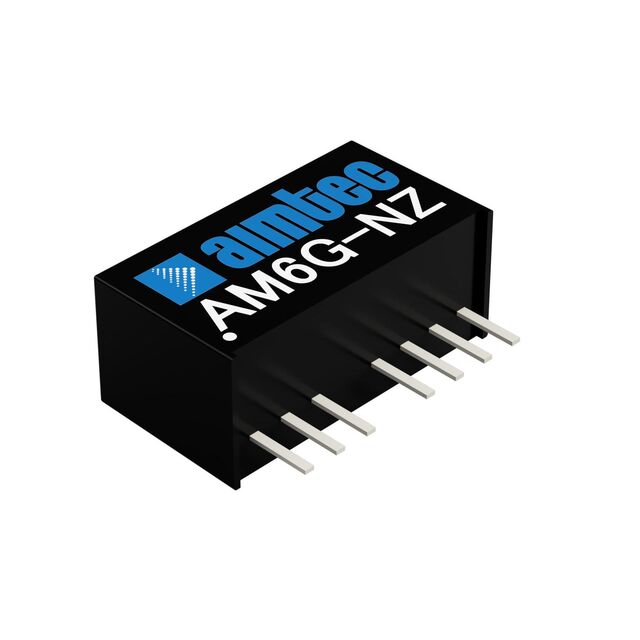

AM6G-1224SNZ

Active

aimtec

DC DC CONVERTER 24V 6W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 24V 6W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Output 1	Efficiency	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Type	Applications	Features	Package / Case	Supplier Device Package	Power (Watts)	Approval Agency
aimtec AM6G-1203SNZ	1.35 A	1.6 kV	9 V	3.3 V	76 %	18 V	Through Hole	-40 °C	105 ░C	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	1	Isolated Module	ITE (Commercial)	Remote On/Off	8-SIP Module	8-SIP	4.45 W
aimtec AM6G-0505SH30Z	1.2 A	3000 V	4.5 V	5 V	79 %	9 V	Through Hole	-40 °C	85 °C	0.44 "	21.9 mm	0.36 "	0.86 in	9.2 mm	11.1 mm	1	Isolated Module	ITE (Commercial)	Remote On/Off	8-SIP Module		6 W	CE cURus UL
aimtec AM6G-1224SNZ	250 mA	1.6 kV	9 V	24 V	84 %	18 V	Through Hole	-40 °C	105 ░C	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	1	Isolated Module	ITE (Commercial)	Remote On/Off	8-SIP Module	8-SIP	6 W
aimtec AM6G-1209SNZ	667 mA	1.6 kV	9 V	9 V		18 V	Through Hole	-40 °C	105 ░C	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	1	Isolated Module	ITE (Commercial)	Remote On/Off	8-SIP Module	8-SIP	6 W
aimtec AM6G-2405SNZ	1.2 A	1.6 kV	18 V	5 V		36 V	Through Hole	-40 °C	105 ░C	0.47 "	22 mm	0.37 "	0.87 in	9.5 mm	12 mm	1	Isolated Module	ITE (Commercial)	Remote On/Off	8-SIP Module	8-SIP	6 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 24V 250mA 9V - 18V Input
