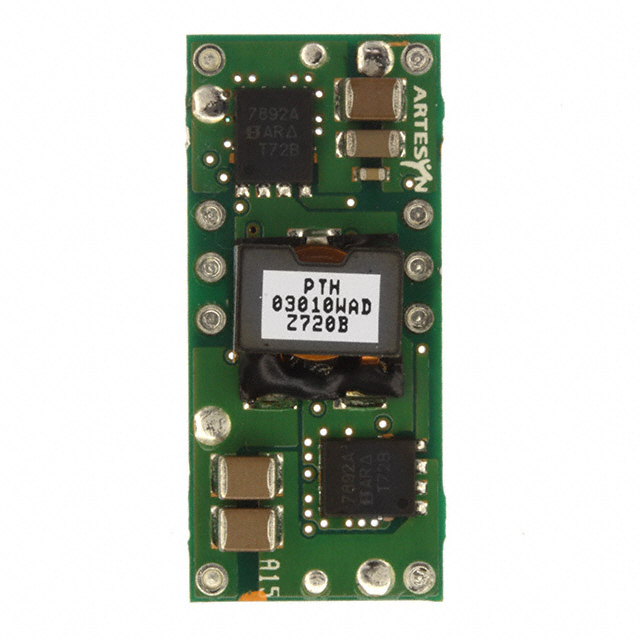

PTH03010WAD
ObsoleteARTESYN / Advanced Energy
CONV DC/DC 3.3VIN ADJOUT 15A
Deep-Dive with AI
Search across all available documentation for this part.
PTH03010WAD
ObsoleteARTESYN / Advanced Energy
CONV DC/DC 3.3VIN ADJOUT 15A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTH03010WAD |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 15 A |
| Efficiency | 93 % |
| Features | UVLO, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-DIP Module |
| Size / Dimension [x] | 1.37 in |
| Size / Dimension [x] | 34.8 mm |
| Size / Dimension [y] | 0.62 " |
| Size / Dimension [y] | 15.7 mm |
| Size / Dimension [z] | 0.35 " |
| Size / Dimension [z] | 8.9 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 3.65 V |
| Voltage - Input (Min) [Min] | 2.95 V |
| Voltage - Output 1 [Max] | 2.5 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 18.96 | |
| 5 | $ 18.81 | |||
| 10 | $ 18.66 | |||
| 25 | $ 18.37 | |||
| 50 | $ 17.50 | |||
| 100 | $ 16.04 | |||
| 250 | $ 15.75 | |||
| 450 | $ 15.52 | |||
Description
General part information
PTH03010 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5V 15A 2.95V - 3.65V Input
