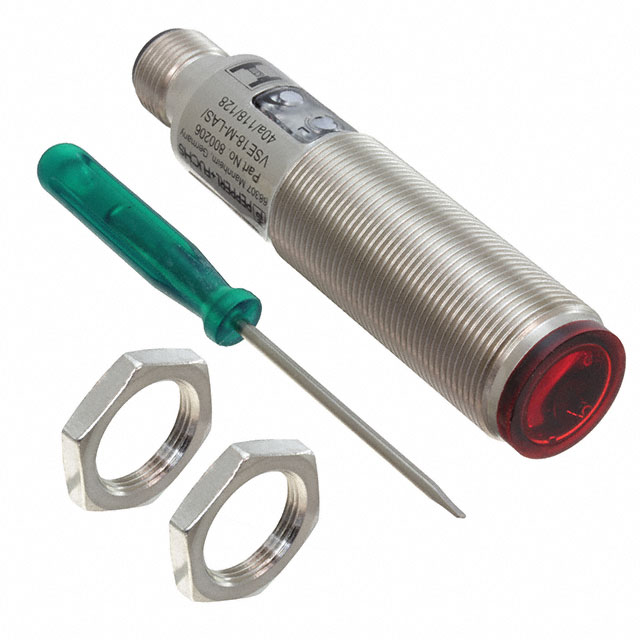

VSE18-M-LAS/40A/118/128 - VSE18-M-LAS/40A/118/128

VSE18-M-LAS/40A/118/128

Active
PEPPERL+FUCHS

PHOTOELECTRIC SENSOR, V18 SERIES, RECEIVER, LASER, OPPOSED, 60 M, NPN / PNP, 10 VDC TO 30 VDC

Deep-Dive with AI

Search across all available documentation for this part.

VSE18-M-LAS/40A/118/128 - VSE18-M-LAS/40A/118/128

VSE18-M-LAS/40A/118/128

Active
PEPPERL+FUCHS

PHOTOELECTRIC SENSOR, V18 SERIES, RECEIVER, LASER, OPPOSED, 60 M, NPN / PNP, 10 VDC TO 30 VDC

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationVSE18-M-LAS/40A/118/128
Adjustment TypeAdjustable
Connection MethodConnector, M12
Ingress ProtectionIP67
Light SourceRed Laser Diode (655nm)
Operating Temperature [Max]55 °C
Operating Temperature [Min]-25 °C
Output ConfigurationLight-On/Dark-On
Response Time100 µs
Sensing Distance [Max]60 mm
Sensing Distance [Max]2.362 "
Sensing Distance [Min]0 "
Sensing Distance [Min]0 mm
Sensing MethodThrough-Beam
Voltage - Supply [Max]30 VDC
Voltage - Supply [Min]10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 152.62
10$ 139.90
NewarkEach 1$ 239.09
5$ 203.90
10$ 195.62
25$ 186.30
50$ 170.78
100$ 146.97

Description

General part information

VSE18 Series

The V18 series Thru-Beam Sensor with emitter and receiver aligned opposite one another. The advantage of this is that the light reaches the receiver directly and long detection ranges and high excess gain can therefore be achieved. This sensor is capable of reliably detecting almost any object. The angle of incidence, surface characteristics, colour of the object are irrelevant and do not influence the functional reliability of the sensor.
