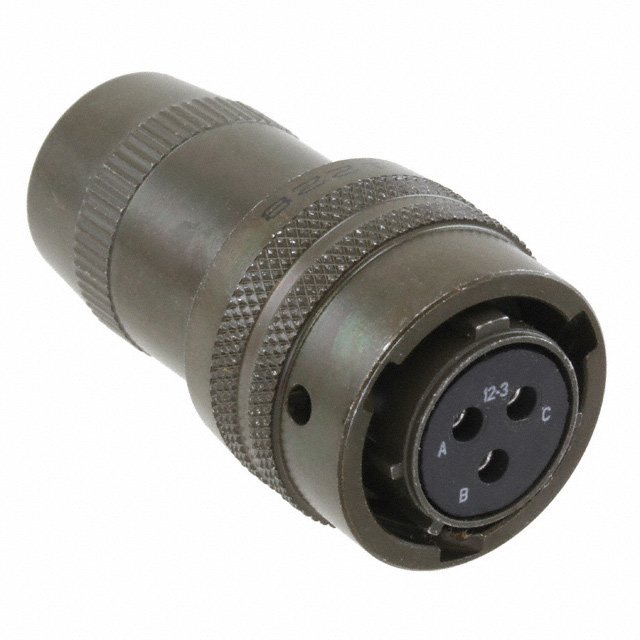

PT06W-12-3S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

PT06W-12-3S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT06W-12-3S

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	12-3
Shielding	Unshielded

PT06W Series

Part	Contact Material	Contact Finish - Mating	Qualification	Orientation	Color	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Applications	Mounting Type	Backshell Material, Plating	Features	Shielding	Insert Material	Connector Type	Fastening Type	Number of Positions	Primary Material	Shell Size - Insert
Amphenol Industrial Operations PT06W-10-98S	Copper Alloy	Gold	MIL-DTL-26482 Series I	N	Olive Drab	Aluminum	-55 °C	125 °C	Olive Drab Chromate over Cadmium	10	98	Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)	Aluminum Olive Drab Cadmium	Backshell Coupling Nut	Unshielded	Neoprene	Female Sockets Plug	Bayonet Lock	6	Metal
Amphenol Industrial Operations PT06W-12-3S	Copper Alloy	Gold	MIL-DTL-26482 Series I	N	Olive Drab	Aluminum	-55 °C	125 °C	Olive Drab Chromate over Cadmium			Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)	Aluminum Olive Drab Cadmium	Backshell Coupling Nut	Unshielded	Neoprene	Female Sockets Plug	Bayonet Lock		Metal	12-3
Amphenol Industrial Operations PT06W-12-10S(571)	Copper Alloy		MIL-DTL-26482 Series I	N			-55 °C	125 °C				Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)		Backshell Coupling Nut	Unshielded	Neoprene	Female Sockets Plug	Bayonet Lock	10
Amphenol Industrial Operations PT06W-8-4S	Copper Alloy	Gold	MIL-DTL-26482 Series I	N	Olive Drab	Aluminum	-55 °C	125 °C	Olive Drab Chromate over Cadmium			Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)	Aluminum Olive Drab Cadmium	Backshell Coupling Nut	Unshielded	Neoprene	Female Sockets Plug	Bayonet Lock	4	Metal	8-4
Amphenol Industrial Operations PT06W-14-18P(023)	Copper Alloy	Gold	MIL-DTL-26482 Series I	N	Silver	Aluminum	-55 °C	125 °C	Electroless Nickel	14	18	Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)	Aluminum Electroless Nickel	Backshell Coupling Nut	Unshielded	Neoprene	Male Pins Plug	Bayonet Lock	18	Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.24
		10	$ 47.02
		25	$ 45.21
		50	$ 43.70
		100	$ 41.29

Description

General part information

PT06W Series

3 Position Circular Connector Plug, Female Sockets Solder Cup
