SPHCW1HDNE25YHRT4J

Obsolete

Samsung Semiconductor, Inc.

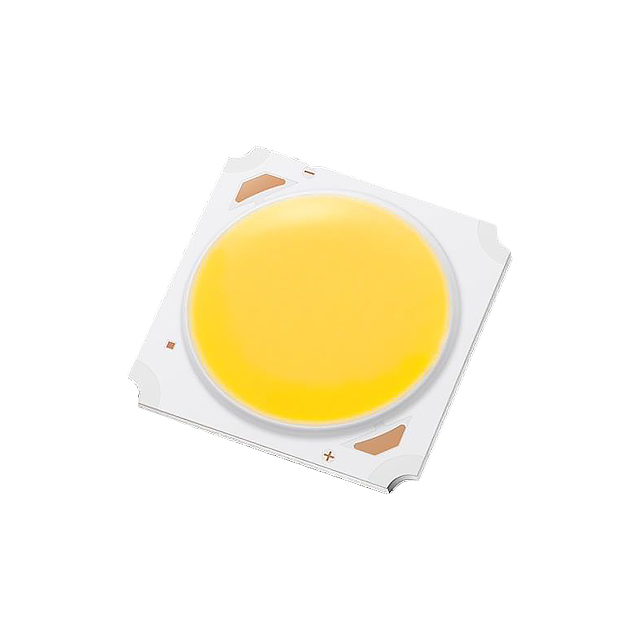

LED COB LC040B COOL WH SQ 5000K

Deep-Dive with AI

Search across all available documentation for this part.

SPHCW1HDNE25YHRT4J

Obsolete

Samsung Semiconductor, Inc.

LED COB LC040B COOL WH SQ 5000K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPHCW1HDNE25YHRT4J

CCT (K)	5000 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	1.62 A
Current - Test	1.08 A
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	17 mm
Lumens/Watt @ Current - Test	138 lm/W
Luminous Flux @ Current/Temperature	5295 lm
Luminous Flux @ Current/Temperature [Max]	6085 lm
Luminous Flux @ Current/Temperature [Min]	4505 lm
Size / Dimension [x]	21.5 mm
Size / Dimension [y]	21.5 mm
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	35.5 V

SPHCW1 Series

Part	Height [z]	Light Emitting Surface (LES) [diameter]	Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	Current - Max [Max]	Color	Configuration	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Lens Type	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	CCT (K)
Samsung Semiconductor, Inc. SPHCW1HDNA25YHR31E	1.6 mm	11 mm	Chip On Board (COB)	115 °	35.5 V	360 mA	660 mA	Cool White	Square	80	150 lm/W	Flat	2040 lm	1800 lm	1920 lm
Samsung Semiconductor, Inc. SPHCW1HDN945YHR3B3	1.5 mm	8 mm	Chip On Board (COB)	115 °	35.5 V	240 mA	430 mA	Cool White	Square	80		Flat	1552 lm	1268 lm	1410 lm
Samsung Semiconductor, Inc. SPHCW1HDNE25YHR34H	1.5 mm	17 mm	Chip On Board (COB)	115 °	35.5 V	1.08 A	1.9 A	Cool White	Square	80	154 lm/W	Flat	6085 lm	5690 lm	5888 lm	21.5 mm	21.5 mm
Samsung Semiconductor, Inc. SPHCW1HDNC25YHQT2G	1.5 mm	17 mm	Chip On Board (COB)	115 °	35.5 V	720 mA	1.3 A	Cool White	Square	80	158 lm/W	Flat	4280 lm	3820 lm	4050 lm	21.5 mm	21.5 mm	5700 K
Samsung Semiconductor, Inc. SPHCW1HDNA25YHR3B3	1.6 mm	11 mm	Chip On Board (COB)	115 °	35.5 V	360 mA	660 mA	Cool White	Square	80	156 lm/W	Flat	2199 lm	1800 lm	2000 lm
Samsung Semiconductor, Inc. SPHCW1HDN825YHRTEE	1.5 mm	8 mm	Chip On Board (COB)	115 °	35.5 V	180 mA	320 mA	Cool White	Square	80	149 lm/W	Flat	1011 lm	887 lm	949 lm			5000 K
Samsung Semiconductor, Inc. SPHCW1HDNC25YHR32H	1.5 mm	17 mm	Chip On Board (COB)	115 °	35.5 V	720 mA	1.3 A	Cool White	Square	80	163 lm/W	Flat				21.5 mm	21.5 mm
Samsung Semiconductor, Inc. SPHCW1HDND25YHQT3H	1.5 mm	17 mm	Chip On Board (COB)	115 °	35.5 V	900 mA	1.62 A	Cool White	Square	80	155 lm/W	Flat			4949 lm	21.5 mm	21.5 mm	5700 K
Samsung Semiconductor, Inc. SPHCW1HDNE25YHRT4J	1.5 mm	17 mm	Chip On Board (COB)	115 °	35.5 V	1.08 A	1.62 A	Cool White	Square	80	138 lm/W	Flat	6085 lm	4505 lm	5295 lm	21.5 mm	21.5 mm	5000 K
Samsung Semiconductor, Inc. SPHCW1HDN825YHR3EE	1.5 mm	8 mm	Chip On Board (COB)	115 °	35.5 V	180 mA	320 mA	Cool White	Square	80	149 lm/W	Flat	1011 lm	887 lm	949 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SPHCW1 Series

LED Lighting COBs Engines Modules Chip On Board (COB) LC040B White, Cool Square
