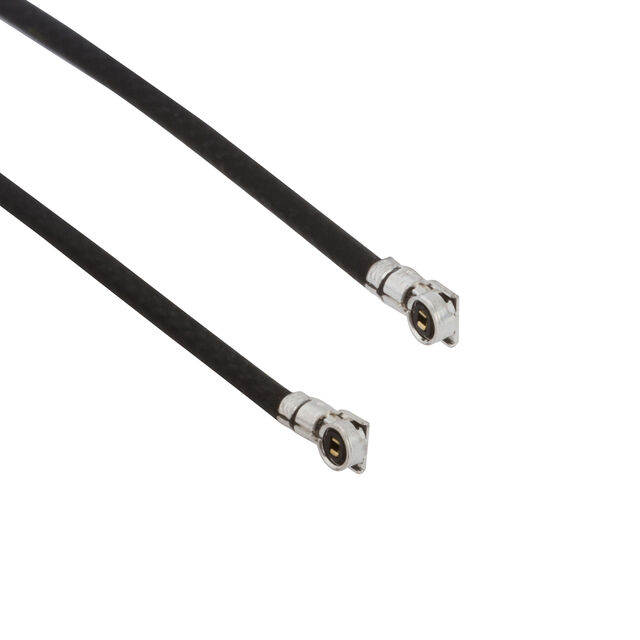

U-1PU-113-035B2
ActiveAmphenol RF
COAX CBL AMC4 TO AMC4 1.3"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
U-1PU-113-035B2
ActiveAmphenol RF
COAX CBL AMC4 TO AMC4 1.3"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | U-1PU-113-035B2 |
|---|---|
| 1st Connector | AMC4 Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | AMC4 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 1.13mm OD Coaxial Cable |
| Color | Black |
| Frequency - Max [Max] | 6000 MHz |
| Length [x] | 1.378 in |
| Length [x] | 35 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | AMC4 to AMC4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.60 | |
| 10 | $ 4.76 | |||
| 25 | $ 4.46 | |||
| 50 | $ 4.25 | |||
| 100 | $ 4.05 | |||
| 250 | $ 3.79 | |||
| 500 | $ 3.61 | |||
| 1000 | $ 3.25 | |||
| 2500 | $ 3.13 | |||
Description
General part information
U-1PU-113 Series
Cable Assembly Coaxial AMC4 to AMC4 1.13mm OD Coaxial Cable 1.378" (35.00mm)
