307-029-454-103

Active

EDAC Inc.

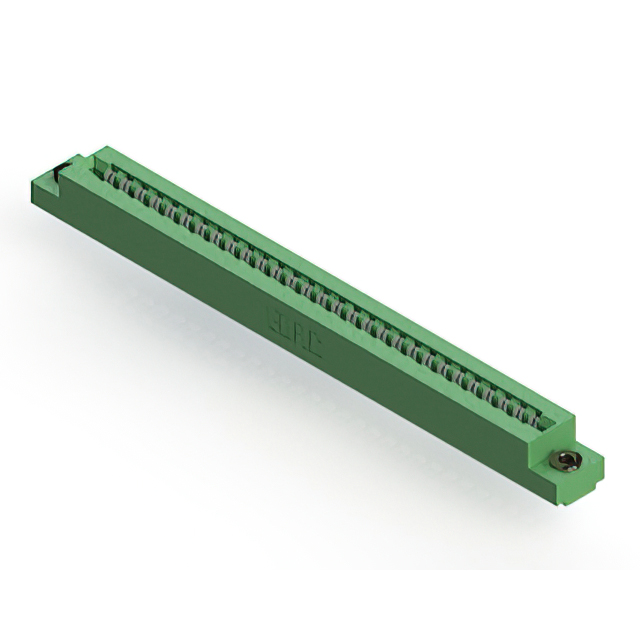

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 29 CONTACTS, PANEL MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

307-029-454-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 29 CONTACTS, PANEL MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-029-454-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Surface Mount
Number of Positions	58
Number of Positions/Bay/Row	29
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

307-029 Series

...

Part	Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Number of Rows	Read Out	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row	Contact Type	Color	Termination Rows	Material - Insulation	Gender	Features	Flange Feature	Pitch [x]	Pitch [x]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-029-459-168	Solder	Through Hole Right Angle	-40 °C	105 ░C	Copper Alloy	Tin	1	Single	29	1.37 mm	0.054 "	1.78 mm	0.07 in	29	Semi Bellows	Green	1	Polyester Thermoplastic	Female	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Non Specified - Single Edge
EDAC Inc. 307-029-458-178	Solder	Through Hole Right Angle	-40 °C	105 ░C	Copper Alloy	Tin	1	Single	29	1.37 mm	0.054 "	1.78 mm	0.07 in	29	Semi Bellows	Green	1	Polyester Thermoplastic	Female	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	Non Specified - Single Edge
EDAC Inc. 307-029-547-107	Wire Wrap	Through Hole	-40 °C	105 ░C	Copper Alloy	Gold	1	Single	29	1.37 mm	0.054 "	1.78 mm	0.07 in	29	Semi Bellows	Green	1	Polyester Thermoplastic	Female		Flush Mount M3 Threaded Insert Top Opening	0.156 in	3.96 mm	Non Specified - Single Edge	10 Áin	0.25 Ám
EDAC Inc. 307-029-454-103	Solder Eyelet(s)	Surface Mount	-40 °C	105 ░C	Copper Alloy	Tin	2	Dual	58	1.37 mm	0.054 "	1.78 mm	0.07 in	29	Semi Bellows	Green	1	Polyester Thermoplastic	Female		Floating Bobbin Flush Mount	0.156 in	3.96 mm	Non Specified - Dual Edge			0.116 in	2.95 mm
EDAC Inc. 307-029-459-102	Solder	Through Hole Right Angle	-40 °C	105 ░C	Copper Alloy	Tin	1	Single	29	1.37 mm	0.054 "	1.78 mm	0.07 in	29	Semi Bellows	Green	1	Polyester Thermoplastic	Female		Flush Mount Top Opening Unthreaded	0.156 in	3.96 mm	Non Specified - Single Edge			0.128 "	3.25 mm
EDAC Inc. 307-029-554-102	Solder Eyelet(s)	Surface Mount	-40 °C	105 ░C	Copper Alloy	Gold	2	Dual	58	1.37 mm	0.054 "	1.78 mm	0.07 in	29	Semi Bellows	Green	1	Polyester Thermoplastic	Female		Flush Mount Top Opening Unthreaded	0.156 in	3.96 mm	Non Specified - Dual Edge	10 Áin	0.25 Ám	0.128 "	3.25 mm
EDAC Inc. 307-029-554-112	Solder Eyelet(s)	Surface Mount	-40 °C	105 ░C	Copper Alloy	Gold	2	Dual	58	1.37 mm	0.054 "	1.78 mm	0.07 in	29	Semi Bellows	Green	1	Polyester Thermoplastic	Female		Flush Mount Side Opening Unthreaded	0.156 in	3.96 mm	Non Specified - Dual Edge	10 Áin	0.25 Ám	0.128 "	3.25 mm
EDAC Inc. 307-029-545-103	Wire Wrap	Through Hole	-40 °C	105 ░C	Copper Alloy	Gold	1	Single	29	1.37 mm	0.054 "	1.78 mm	0.07 in	29	Semi Bellows	Green	1	Polyester Thermoplastic	Female		Floating Bobbin Flush Mount	0.156 in	3.96 mm	Non Specified - Single Edge	10 Áin	0.25 Ám	0.116 in	2.95 mm
EDAC Inc. 307-029-457-103	Solder	Through Hole Right Angle	-40 °C	105 ░C	Copper Alloy	Tin	2	Dual	58	1.37 mm	0.054 "	1.78 mm	0.07 in	29	Semi Bellows	Green	1	Polyester Thermoplastic	Female		Floating Bobbin Flush Mount	0.156 in	3.96 mm	Non Specified - Dual Edge			0.116 in	2.95 mm
EDAC Inc. 307-029-531-103	Solder	Through Hole	-40 °C	105 ░C	Copper Alloy	Gold	1	Single	29	1.37 mm	0.054 "	1.78 mm	0.07 in	29	Semi Bellows	Green	1	Polyester Thermoplastic	Female		Floating Bobbin Flush Mount	0.156 in	3.96 mm	Non Specified - Single Edge	10 Áin	0.25 Ám	0.116 in	2.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 30.49
Newark	Each	1	$ 39.47
		100	$ 27.21
		250	$ 22.10
		500	$ 20.49
		1000	$ 16.93

Description

General part information

307-029 Series

58 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
