W634GU6NB12I

Active

Winbond Electronics

IC DRAM 4GBIT PARALLEL 96VFBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W634GU6NB12I

Active

Winbond Electronics

IC DRAM 4GBIT PARALLEL 96VFBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W634GU6NB12I

Access Time	20 ns
Clock Frequency	800 MHz
Memory Format	DRAM
Memory Interface	Parallel
Memory Organization	256 M
Memory Size	512 kb
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	95 °C
Operating Temperature [Min]	-40 °C

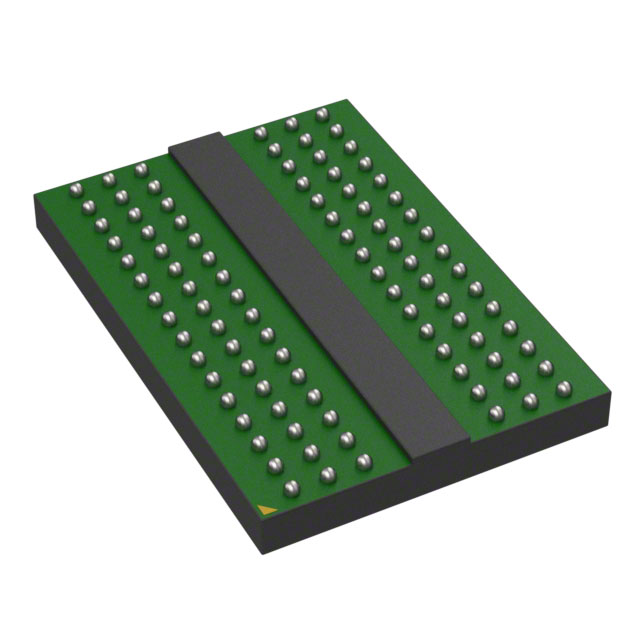

Package / Case	96-VFBGA
Supplier Device Package	96-VFBGA (9x13)
Technology	SDRAM - DDR3L
Voltage - Supply [Max]	1.45 V
Voltage - Supply [Min]	1.283 V
Write Cycle Time - Word, Page	15 ns

W634GU6 Series

Part	Mounting Type	Memory Interface	Memory Type	Clock Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Technology	Access Time	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Memory Format	Memory Organization	Write Cycle Time - Word, Page
Winbond Electronics W634GU6QB-11	Surface Mount	Parallel	Volatile	933 MHz	1.45 V	1.283 V	512 kb	SDRAM - DDR3L	20 ns	7.5x13 96-VFBGA	96-VFBGA	95 °C	0 °C	DRAM	256 M	15 ns
Winbond Electronics W634GU6QB11I TR	Surface Mount	Parallel	Volatile	933 MHz	1.45 V	1.283 V	512 kb	SDRAM - DDR3L	20 ns	7.5x13 96-VFBGA	96-VFBGA	95 °C	-40 °C	DRAM	256 M	15 ns
Winbond Electronics W634GU6QB-09	Surface Mount	Parallel	Volatile	1.06 GHz	1.45 V	1.283 V	512 kb	SDRAM - DDR3L	20 ns	7.5x13 96-VFBGA	96-VFBGA	95 °C	0 °C	DRAM	256 M	15 ns
Winbond Electronics W634GU6NB12I	Surface Mount	Parallel	Volatile	800 MHz	1.45 V	1.283 V	512 kb	SDRAM - DDR3L	20 ns	96-VFBGA (9x13)	96-VFBGA	95 °C	-40 °C	DRAM	256 M	15 ns
Winbond Electronics W634GU6RB-09 TR	Surface Mount	Parallel	Volatile	1067 MHz	1.45 V	1.283 V	512 kb	SDRAM - DDR3L	20 ns	7.5x13 96-VFBGA	96-VFBGA	95 °C	-40 °C	DRAM	256 M	15 ns
Winbond Electronics W634GU6QB-11 TR	Surface Mount	Parallel	Volatile	933 MHz	1.45 V	1.283 V	512 kb	SDRAM - DDR3L	20 ns	7.5x13 96-VFBGA	96-VFBGA	95 °C	0 °C	DRAM	256 M	15 ns
Winbond Electronics W634GU6QB09I TR	Surface Mount	Parallel	Volatile	1.06 GHz	1.45 V	1.283 V	512 kb	SDRAM - DDR3L	20 ns	7.5x13 96-VFBGA	96-VFBGA	95 °C	-40 °C	DRAM	256 M	15 ns
Winbond Electronics W634GU6QB-09 TR	Surface Mount	Parallel	Volatile	1.06 GHz	1.45 V	1.283 V	512 kb	SDRAM - DDR3L	20 ns	7.5x13 96-VFBGA	96-VFBGA	95 °C	0 °C	DRAM	256 M	15 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

W634GU6 Series

SDRAM - DDR3L Memory IC 4Gbit Parallel 800 MHz 20 ns 96-VFBGA (9x13)
