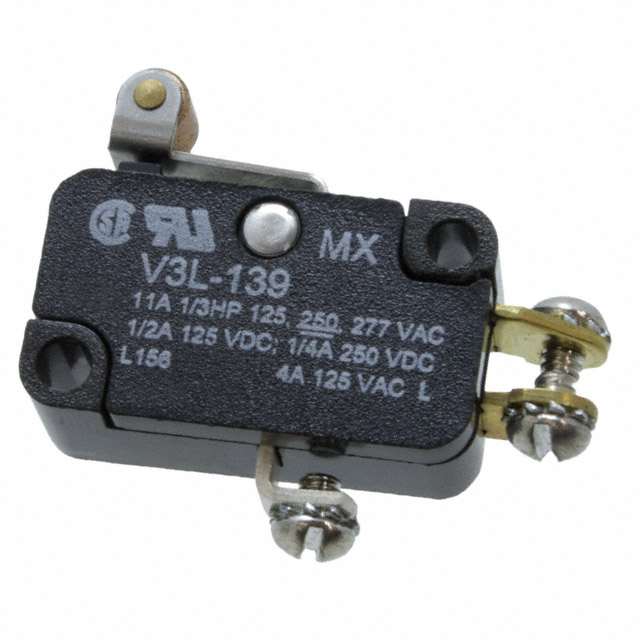

V3L-139

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Voltage Rating - AC	Current Rating (Amps)	Voltage Rating - DC	Operating Position	Operating Position	Mounting Type	Pretravel	Pretravel	Switch Function	Differential Travel	Differential Travel	Actuator Type	Operating Force	Release Force	Overtravel	Overtravel	Termination Style
Honeywell Sensing and Productivity Solutions V3L-139	SPDT	125 V	11 A 500 mA	125 VDC	0.812 in	20.6 mm	Chassis Mount	1.5 mm	0.06 in	On-Mom	0.016 "	0.4 mm	Lever Roller	227 gf	57 gf	0.04 in	1 mm	Screw Terminal
Honeywell Sensing and Productivity Solutions V3L-1376	SPDT	125 V	1 A		0.808 in	20.52 mm	Chassis Mount	3 mm	0.12 in	On-Mom	0.04 in	1.02 mm	Lever Roller	142 gf		0.05 in	1.27 mm	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 142.90

General part information

Switch SPDT Chassis Mount
