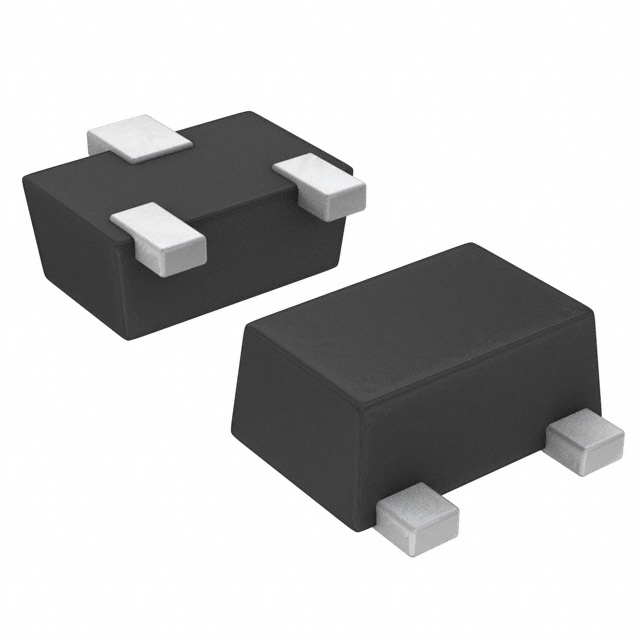

2SA2029FHAT2LR

Active

Rohm Semiconductor

TRANS PNP 50V 0.15A VMT3

Search across all available documentation for this part.

Active

Rohm Semiconductor

TRANS PNP 50V 0.15A VMT3

Technical Specifications

Parameters and characteristics for this part

Specification	2SA2029FHAT2LR

Current - Collector (Ic) (Max) [Max]	150 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	180 hFE
Frequency - Transition	140 MHz
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SOT-723
Power - Max [Max]	150 mW
Qualification	AEC-Q101
Supplier Device Package	VMT3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Package / Case	Transistor Type	Mounting Type	Vce Saturation (Max) @ Ib, Ic	Power - Max [Max]	Operating Temperature	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce	Grade	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Voltage - Collector Emitter Breakdown (Max) [Max]	Qualification	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]
Rohm Semiconductor 2SA2029FHAT2LR	SOT-723	PNP	Surface Mount	500 mV	150 mW	150 °C	150 mA	180 hFE	Automotive	100 nA	140 MHz	50 V	AEC-Q101	VMT3
Rohm Semiconductor 2SA2029T2LQ	SOT-723	PNP	Surface Mount	500 mV	150 mW	150 °C	150 mA			100 nA	140 MHz	50 V		VMT3	120
Rohm Semiconductor 2SA2029FHAT2LQ	SOT-723	PNP	Surface Mount	500 mV	150 mW	150 °C	150 mA		Automotive	100 nA	140 MHz	50 V	AEC-Q101	VMT3	120
Rohm Semiconductor 2SA2029T2LR	SOT-723	PNP	Surface Mount	500 mV	150 mW	150 °C	150 mA	180 hFE		100 nA	140 MHz	50 V		VMT3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor PNP 50 V 150 mA 140MHz 150 mW Surface Mount VMT3
